FR507, FR501 FAST RECOVERY DIODE

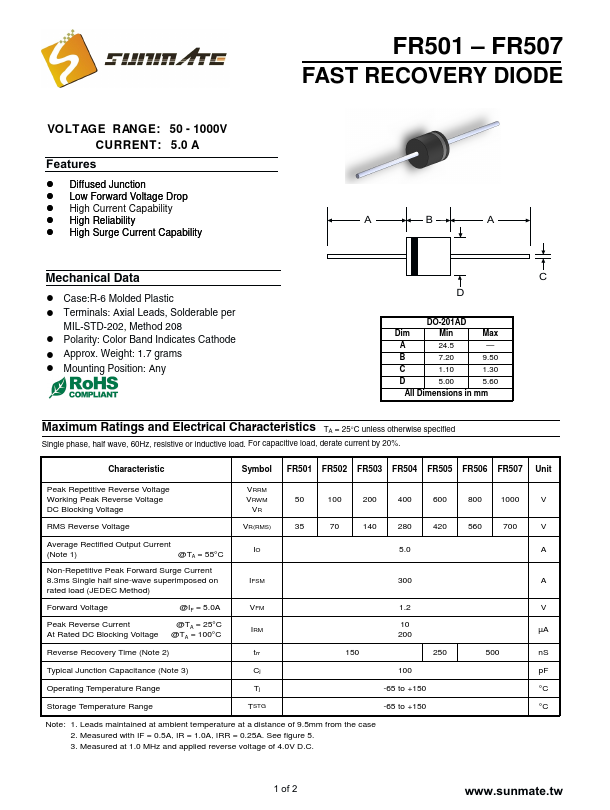

📥 Download Datasheet Datasheet Preview Page 1

Description

FR501 * FR507 FAST RECOVERY DIODE VOLTAGE RANGE: 50 - 1000V CURRENT: 5.0 A .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR507, FR501. Please refer to the document for exact specifications by model.

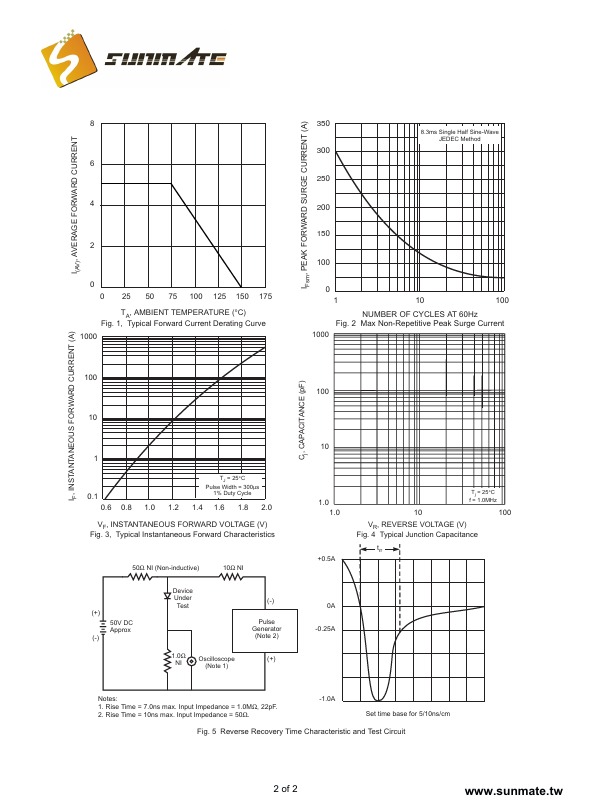

datasheet Preview Page 2

Datasheet Specifications

Part number
FR507, FR501
Manufacturer
Sunmate
File Size
480.54 KB
Datasheet
FR501-Sunmate.pdf
Description
FAST RECOVERY DIODE
Note
This datasheet PDF includes multiple part numbers: FR507, FR501.
Please refer to the document for exact specifications by model.

Features

* ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability A B A Mechanical Data ! Case:R-6 Molded Plastic ! Terminals: Axial Leads, Solderable per MIL-STD-202, Method 208 ! Polarity: Color Band Indicates Cathode ! Approx. Weight:
