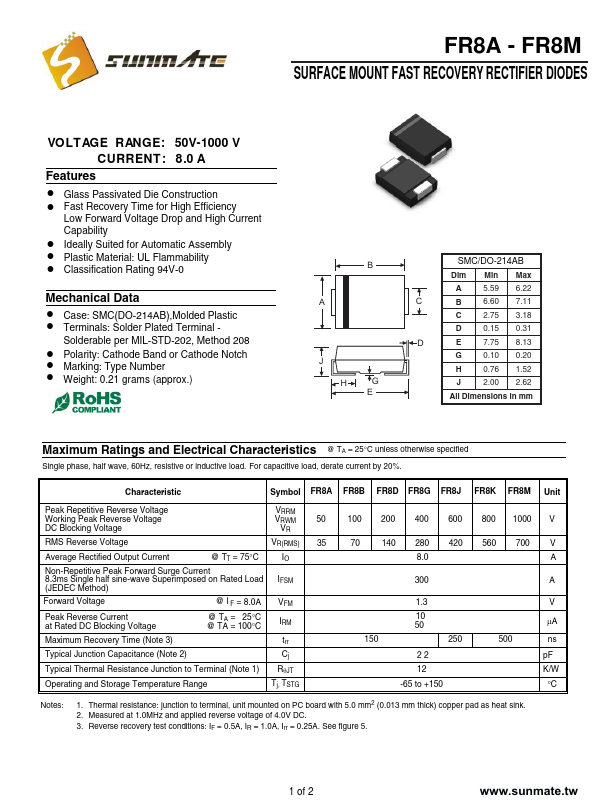

FR8A - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	FR8A
Manufacturer	Sunmate
File Size	378.71 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	FR8A-Sunmate.pdf

! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability ! Classification Rating 94V-0 Mechanical Data ! Case: SMC(DO-214AB),Molded Plastic ! Terminals: Solder Plated Terminal - Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.21 grams (approx. ) B A J H G E SMC/DO-214AB Dim Mi.
