FS1M, FS1A SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

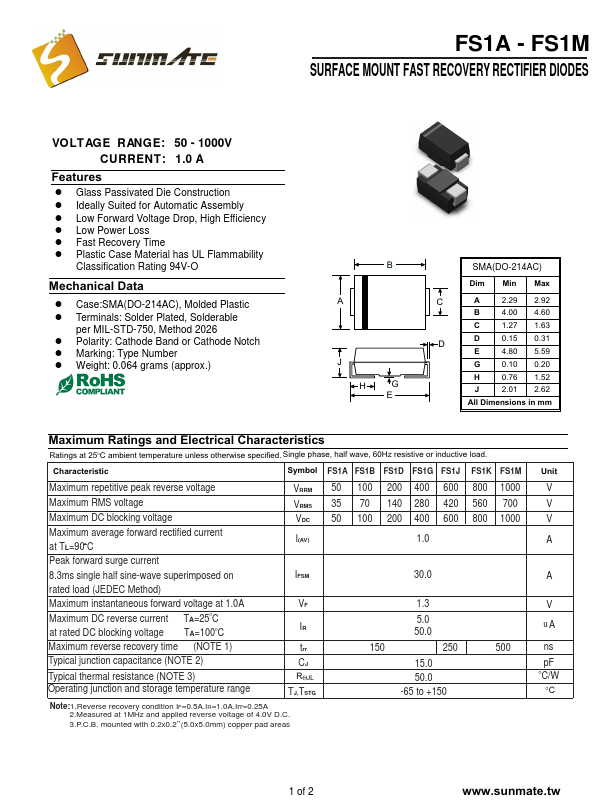

📥 Download Datasheet Datasheet Preview Page 1

Description

FS1A - FS1M SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 1.0 A .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FS1M, FS1A. Please refer to the document for exact specifications by model.

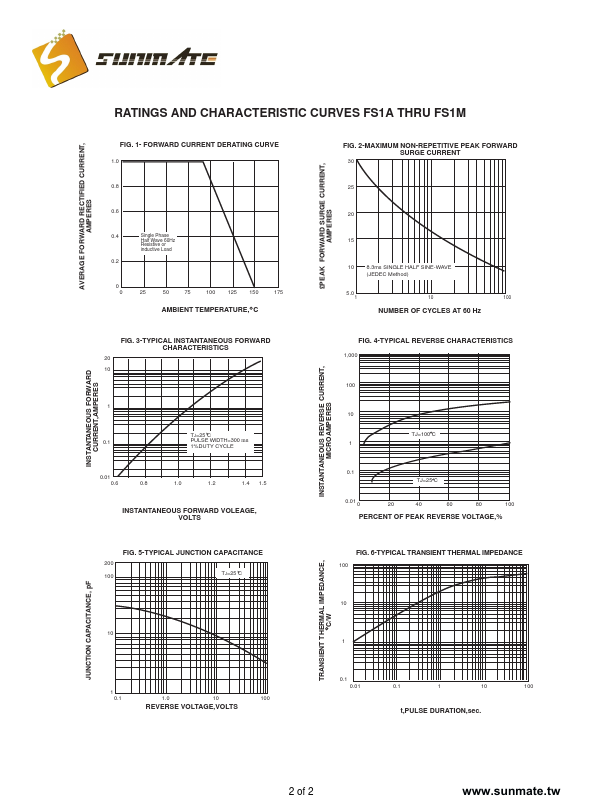

datasheet Preview Page 2

Datasheet Specifications

Part number
FS1M, FS1A
Manufacturer
Sunmate
File Size
527.31 KB
Datasheet
FS1A-Sunmate.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: FS1M, FS1A.
Please refer to the document for exact specifications by model.

Features

* ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss ! Fast Recovery Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O Mechanical Data ! Case:SMA(DO-214AC), Molded Plastic ! Terminals: Sold
