FSM25PT, FSM21PT - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Sunmate

📥 Download Datasheet

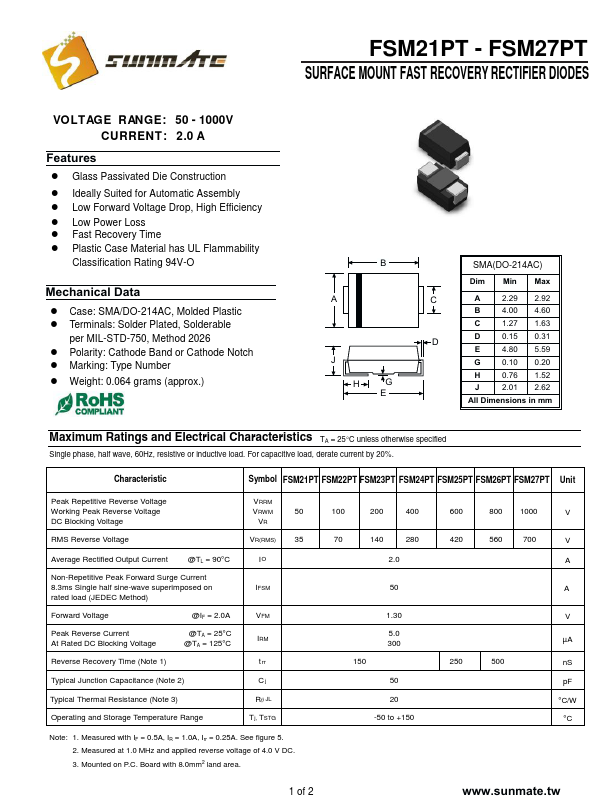

FSM25PT Datasheet Preview — This datasheet PDF includes multiple part numbers: FSM25PT, FSM21PT. Please refer to the document for exact specifications by model.

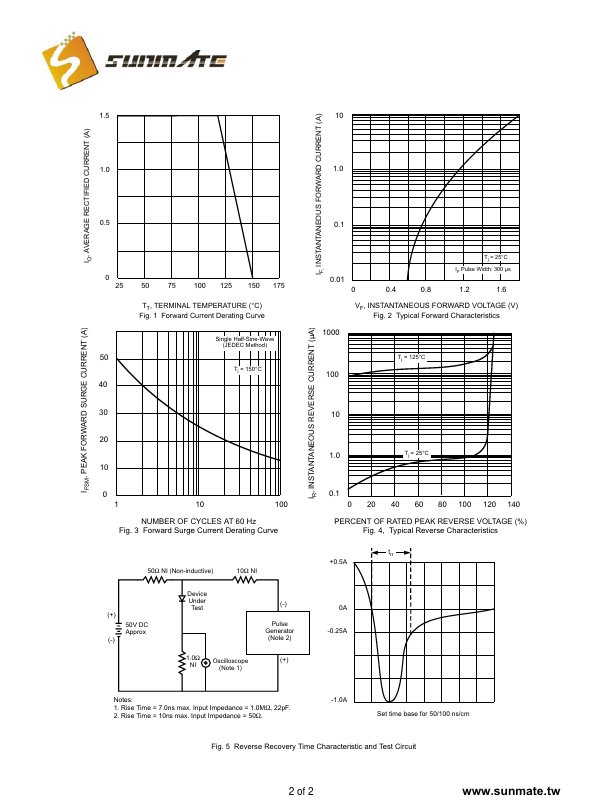

datasheet Preview Page 2

Datasheet Details

Part number	FSM25PT, FSM21PT
Manufacturer	Sunmate
File Size	110.60 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	FSM21PT-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: FSM25PT, FSM21PT. Please refer to the document for exact specifications by model.

FSM25PT Product details

Features

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss ! Fast Recovery Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O B M e ch an ic a lD ata A C ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable p.
