GBJ410, GBJ4005 - GLASS PASSIVATED BRIDGE RECTIFIER

GBJ410 Description

GBJ4005-GBJ410 GLASS PASSIVATED BRIDGE RECTIFIER VOLTAGE RANGE: 50 - 1000V CURRENT: 4.0 A .

GBJ410 Features

* Glass passivated chip junction
* Reliable low cost construction utilizing molded plastic technique
* Ideal for printed circuit board
* Low reverse leakage current
* Low forward voltage drop
* High surge current capabiliy Mechanical Data
* Case:Molded plastic, GBJ 4

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBJ410, GBJ4005. Please refer to the document for exact specifications by model.

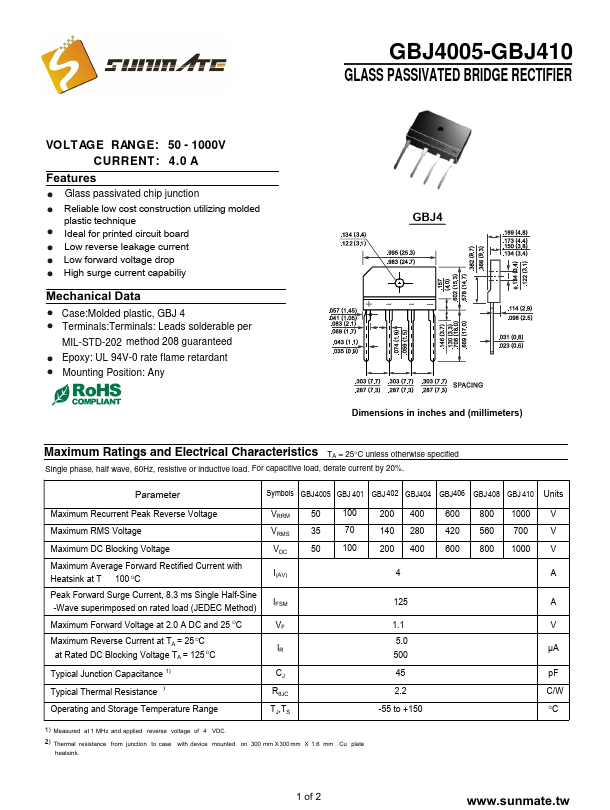

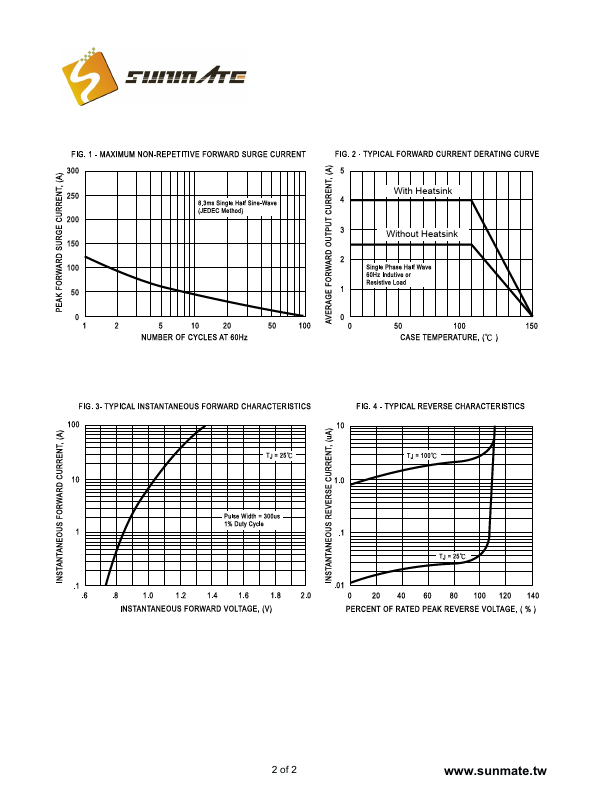

datasheet Preview Page 2

Datasheet Details

Part number
GBJ410, GBJ4005
Manufacturer
Sunmate
File Size
600.02 KB
Datasheet
GBJ4005-Sunmate.pdf
Description
GLASS PASSIVATED BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: GBJ410, GBJ4005.
Please refer to the document for exact specifications by model.
