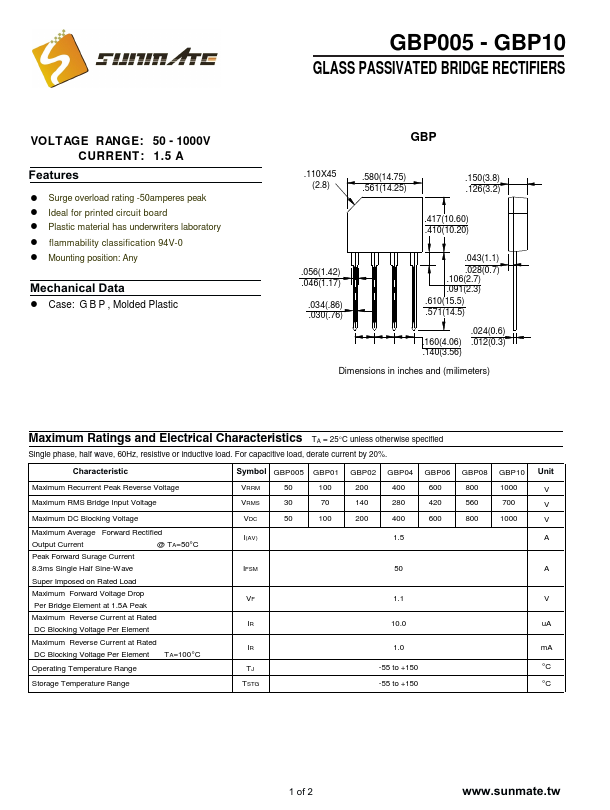

GBP005
Features
! Surge overload rating -50amperes peak ! Ideal for printed circuit board ! Plastic material has underwriters laboratory ! flammability classification 94V-0 ! Mounting position: Any
Mechanical Data
! Case: G B P , Molded Plastic
.110X45 (2.8)
.580(14.75) .561(14.25)
.150(3.8) .126(3.2)
.417(10.60) .410(10.20)
.056(1.42) .046(1.17)
.034(.86) .030(.76)
.043(1.1) .028(0.7) .106(2.7) .091(2.3) .610(15.5) .571(14.5)
.024(0.6) .160(4.06) .012(0.3) .140(3.56)
Dimensions in inches and (milimeters)
Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic
Symbol GBP005 GBP01 GBP02 GBP04 GBP06
Maximum Recurrent Peak Reverse Voltage
VRRM
Maximum RMS Bridge Input Voltage
VRMS
Maximum DC Blocking Voltage
Maximum Average Forward Rectified
Output Current
@ TA=50°C
Peak Forward...
