GBP01, GBP005 GLASS PASSIVATED BRIDGE RECTIFIERS

Sunmate

Description

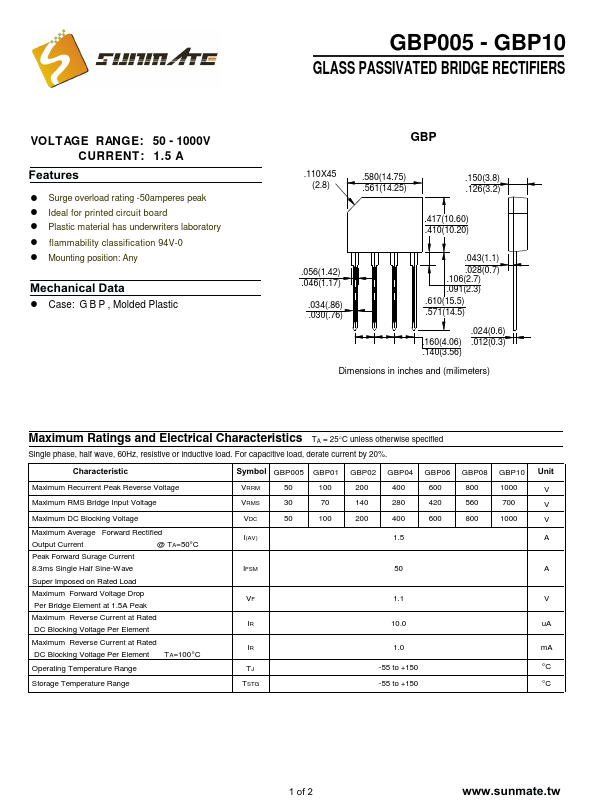

GBP005 - GBP10 GLASS PASSIVATED BRIDGE RECTIFIERS VOLTAGE RANGE: 50 - 1000V CURRENT: 1.5 A .

📥 Download Datasheet

GBP01 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBP01, GBP005. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GBP01, GBP005
Manufacturer: Sunmate
File Size: 380.31 KB
Datasheet: GBP005-Sunmate.pdf
Description: GLASS PASSIVATED BRIDGE RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: GBP01, GBP005.
Please refer to the document for exact specifications by model.

Features

* ! Surge overload rating -50amperes peak ! Ideal for printed circuit board ! Plastic material has underwriters laboratory ! flammability classification 94V-0 ! Mounting position: Any Mechanical Data ! Case: G B P , Molded Plastic GBP .110X45 (2.8) .580(14.75) .561(14.25) .150(3.8) .126(3.2) .417
