GBP06, GBP005 - GLASS PASSIVATED BRIDGE RECTIFIERS

Sunmate

Datasheet Details

Part number: GBP06, GBP005
Manufacturer: Sunmate
File Size: 380.31 KB
Datasheet: GBP005-Sunmate.pdf
Description: GLASS PASSIVATED BRIDGE RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: GBP06, GBP005.
Please refer to the document for exact specifications by model.

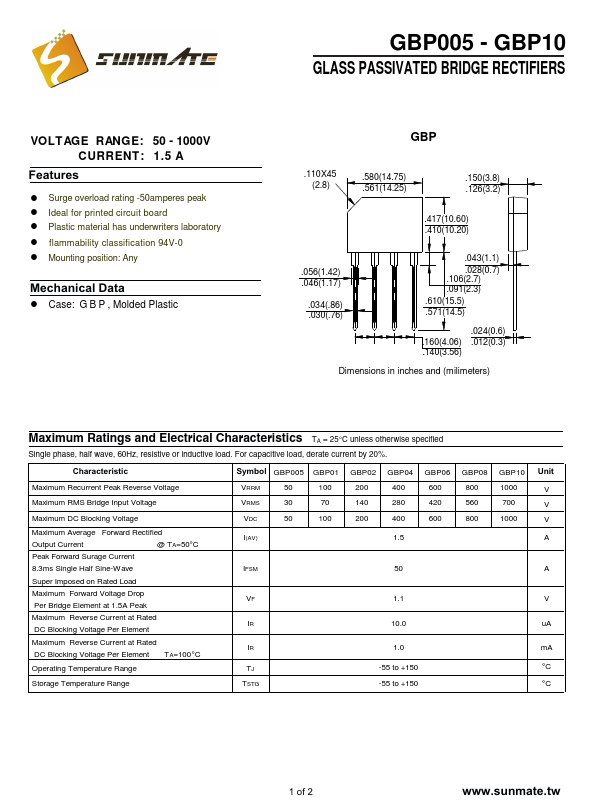

! Surge overload rating -50amperes peak ! Ideal for printed circuit board ! Plastic material has underwriters laboratory ! flammability classification 94V-0 ! Mounting position: Any Mechanical Data ! Case: G B P , Molded Plastic GBP .110X45 (2.8) .580(14.75) .561(14.25) .150(3.8) .126(3.2) .417(10.60) .410(10.20) .056(1.42) .046(1.17) .034(.86) .030(.76) .043(1.1) .028(0.7) .106(2.7) .091(2.3) .610(15.5) .571(14.5) .024(0.6) .160(4.06) .012(0.3) .140(3.56) Dimensions in inches and (milim.
