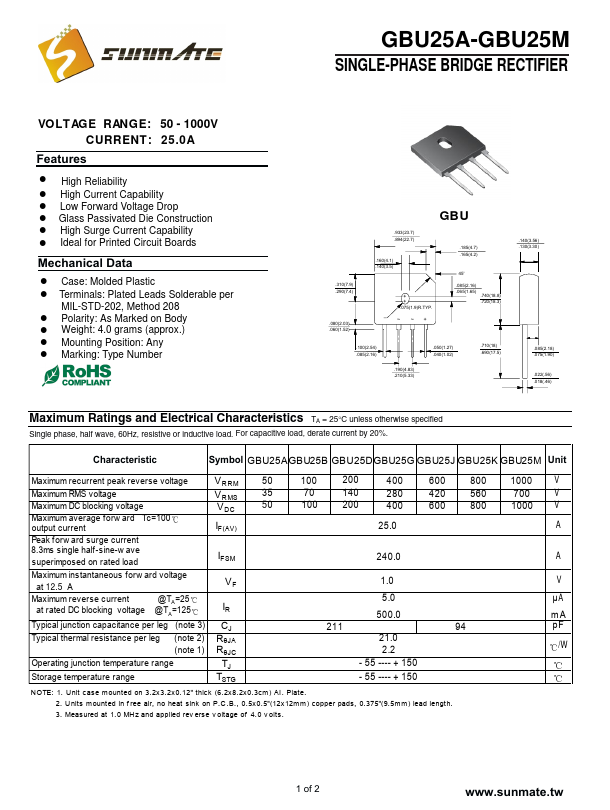

GBU25G
Features
! High Reliability ! High Current Capability ! Low Forward Voltage Drop ! Glass Passivated Die Construction ! High Surge Current Capability ! Ideal for Printed Circuit Boards
Mechanical Data
! Case: Molded Plastic ! Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208 ! Polarity: As Marked on Body ! Weight: 4.0 grams (approx.) ! Mounting Position: Any ! Marking: Type Number
.310(7.9) .290(7.4)
.080(2.03) .060(1.52)
.933(23.7) .894(22.7)
.160(4.1) .140(3.5)
+ + .075(1.9)R.TYP. _ ~ ~+
.185(4.7) .165(4.2)
.085(2.16) .065(1.65)
.740(18.8) .720(18.3)
.100(2.54) .085(2.16)
.190(4.83) .210(5.33)
.050(1.27) .040(1.02)
.710(18) .690(17.5)
.140(3.56) .130(3.30)
.085(2.18) .075(1.90) .022(.56) .018(.46)
Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic
Symbol GBU25AGBU25B GBU25DGBU25G GBU25J GBU25K...
