GP30M, GP30A - AXIAL LEADED SILICON RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	GP30M, GP30A
Manufacturer	Sunmate
File Size	118.39 KB
Description	AXIAL LEADED SILICON RECTIFIER DIODES
Datasheet	GP30A-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: GP30M, GP30A. Please refer to the document for exact specifications by model.

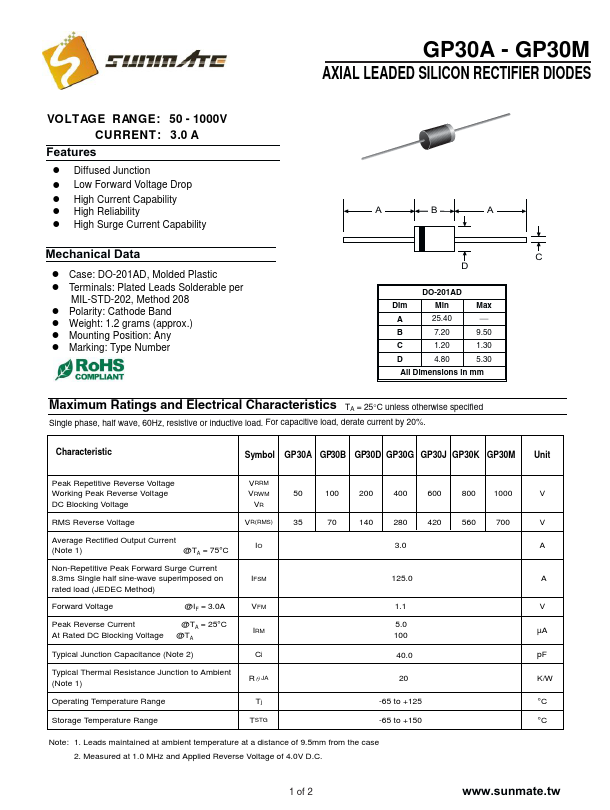

! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case: DO-201AD, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 1.2 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number A B A C D DO-201AD Dim Min Max A 25.40 ¾ B 7.20 9.50 C 1.20 1.30 D 4.80 5.30 All Dimensions in mm Maximum Ratings and Electrical Characte.
