GS2AAF - SURFACE MOUNT SILICON RECTIFIER DIODES

GS2AAF Description

GS2AAF - GS2MAF SURFACE MOUNT SILICON RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 2.0 A .

GS2AAF Applications

* ! Low reverse leakage ! Built-in strain relief,ideal for automated placement ! High forward surge current capability ! High temperature soldering guaranteed: B 250 C/10 seconds at terminals C E Mechanical Data ! Case: SMAF,Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750

📥 Download Datasheet

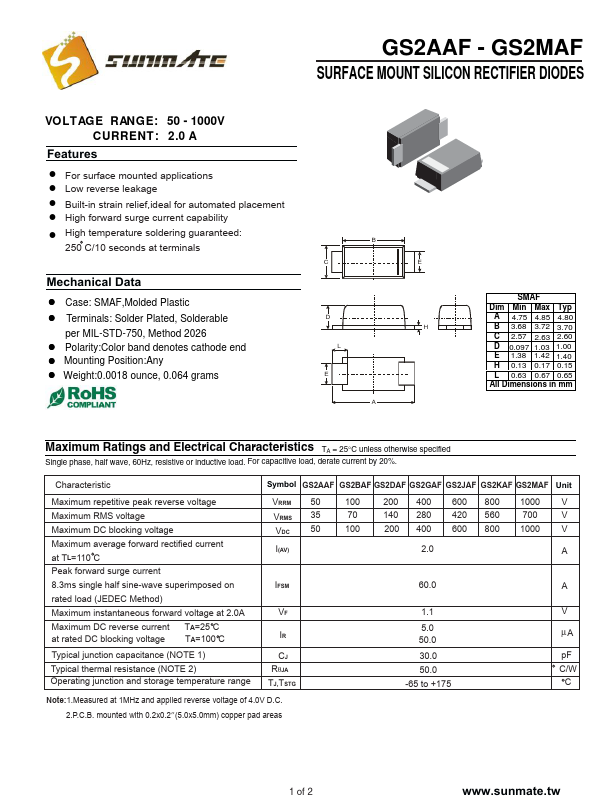

Preview of GS2AAF PDF

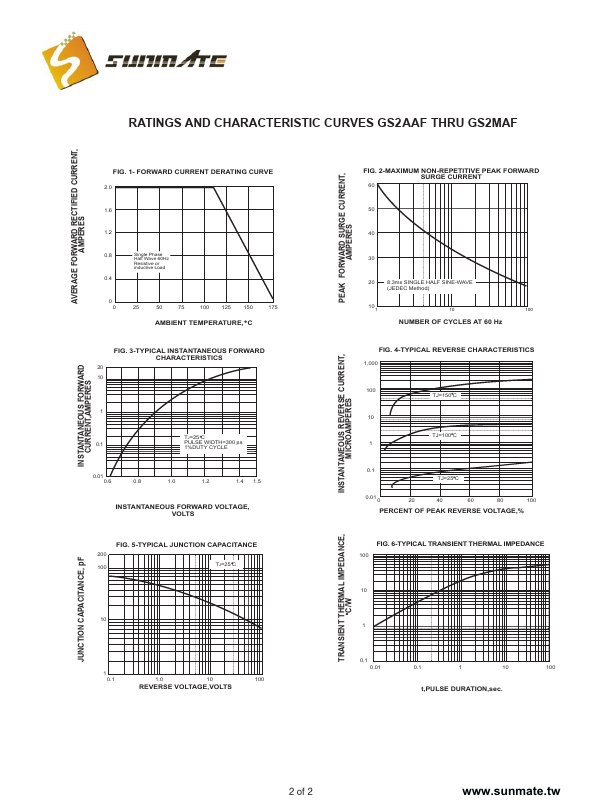

datasheet Preview Page 2

Datasheet Details

Part number
GS2AAF
Manufacturer
Sunmate
File Size
343.73 KB
Datasheet
GS2AAF-Sunmate.pdf
Description
SURFACE MOUNT SILICON RECTIFIER DIODES
