GS2AF - SURFACE MOUNT SILICON RECTIFIER DIODES

GS2AF Description

GS2AF - GS2MF SURFACE MOUNT SILICON RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 2.0 A .

GS2AF Applications

* ! Low reverse leakage ! Built-in strain relief,ideal for automated placement ! High forward surge current capability ! High temperature soldering guaranteed: B 250 C/10 seconds at terminals C E Mechanical Data ! Case:SMBF , Molded Plastic ! Terminals: Solder Plated, Solderable D per MIL-S

📥 Download Datasheet

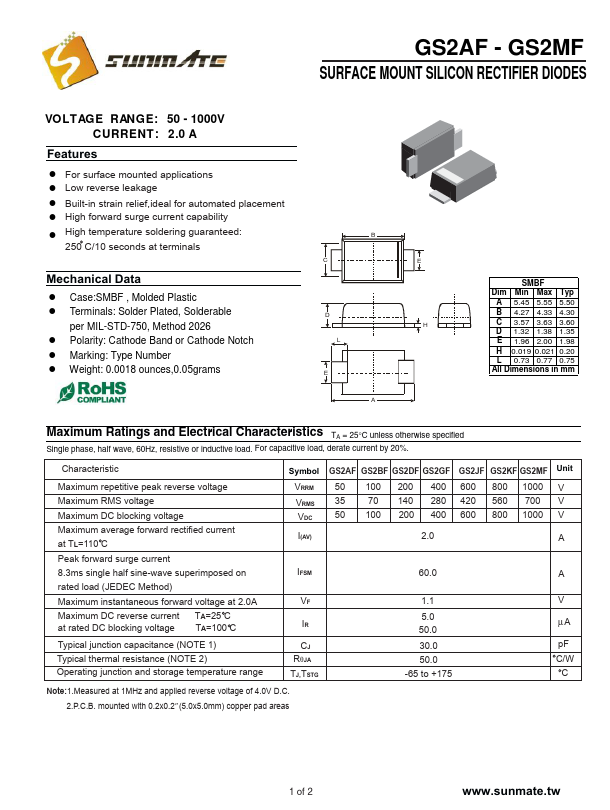

Preview of GS2AF PDF

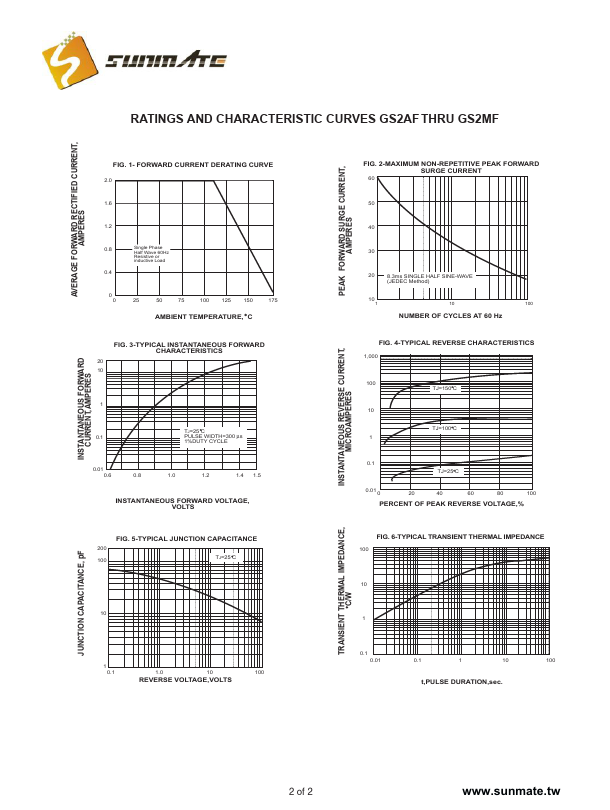

datasheet Preview Page 2

Datasheet Details

Part number
GS2AF
Manufacturer
Sunmate
File Size
342.46 KB
Datasheet
GS2AF-Sunmate.pdf
Description
SURFACE MOUNT SILICON RECTIFIER DIODES
