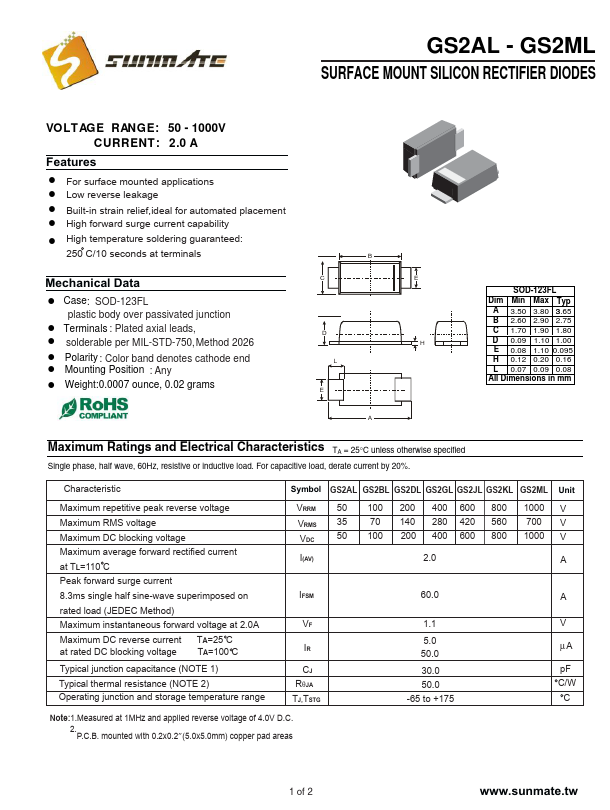

GS2AL
Features
! For surface mounted applications ! Low reverse leakage
! Built-in strain relief,ideal for automated placement ! High forward surge current capability
! High temperature soldering guaranteed:
250 C/10 seconds at terminals
Mechanical Data
! Case: SOD-123FL plastic body over passivated junction
! Terminals : Plated axial leads,
! solderable per MIL-STD-750,Method 2026
! Polarity : Color band denotes cathode end
! Mounting Position : Any
! Weight:0.0007 ounce, 0.02 grams
SOD-123FL Dim Min Max Typ
A 3.50 3.80 3.65 B 2.60 2.90 2.75 C 1.70 1.90 1.80 D 0.09 1.10 1.00 E 0.08 1.10 0.095 H 0.12 0.20 0.16 L 0.07 0.09 0.08 All Dimensions in mm

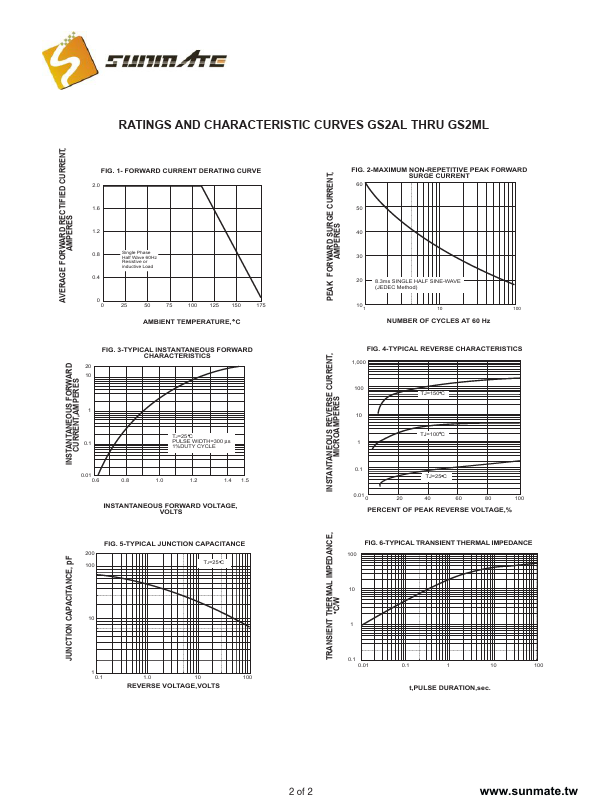

Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic
Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average...
