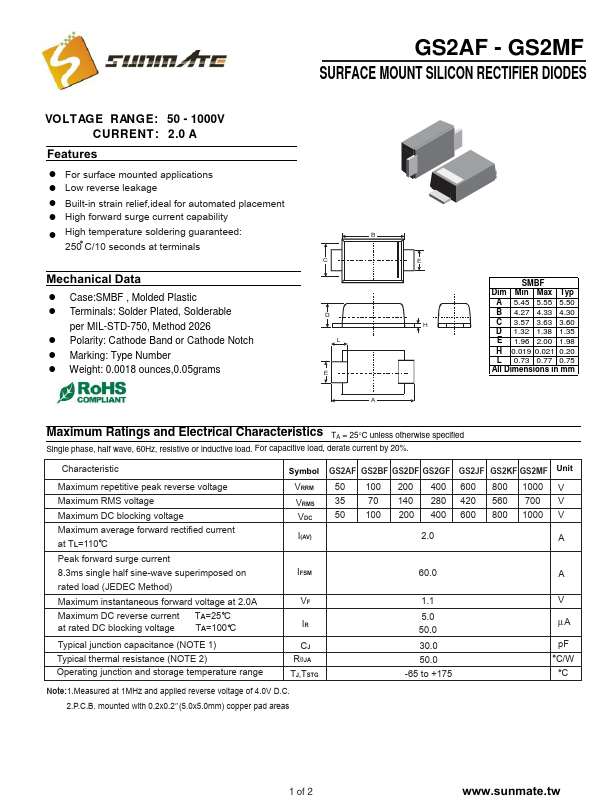

GS2DF
Features
! For surface mounted applications ! Low reverse leakage
! Built-in strain relief,ideal for automated placement ! High forward surge current capability
! High temperature soldering guaranteed:
250 C/10 seconds at terminals
Mechanical Data
! Case:SMBF , Molded Plastic
! Terminals: Solder Plated, Solderable
D per MIL-STD-750, Method 2026
! Polarity: Cathode Band or Cathode Notch
! Marking: Type Number
! Weight: 0.0018 ounces,0.05grams
SMBF Dim Min Max Typ
A 5.45 5.55 5.50 B 4.27 4.33 4.30 C 3.57 3.63 3.60 D 1.32 1.38 1.35 E 1.96 2.00 1.98 H 0.019 0.021 0.20 L 0.73 0.77 0.75 All Dimensions in mm
Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic
Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=110 C Peak...
