GS2GL, GS2AL - SURFACE MOUNT SILICON RECTIFIER DIODES

GS2GL Description

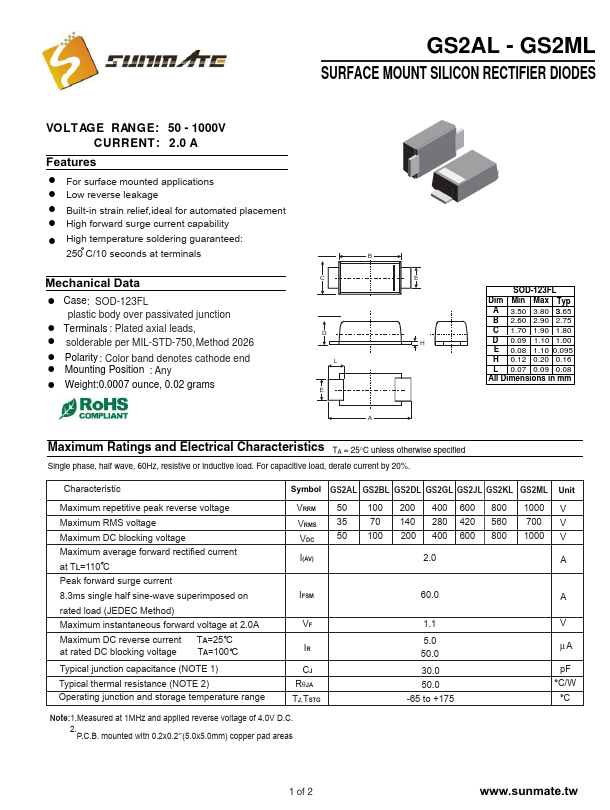

GS2AL - GS2ML SURFACE MOUNT SILICON RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 2.0 A .

GS2GL Applications

* ! Low reverse leakage ! Built-in strain relief,ideal for automated placement ! High forward surge current capability ! High temperature soldering guaranteed: 250 C/10 seconds at terminals B Mechanical Data C E ! Case: SOD-123FL plastic body over passivated junction ! Terminals : Plated axi

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS2GL, GS2AL. Please refer to the document for exact specifications by model.

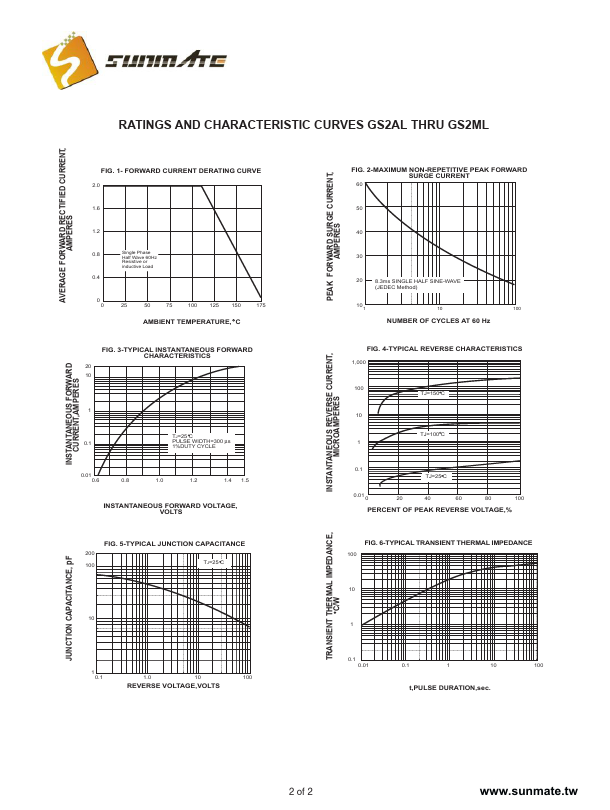

datasheet Preview Page 2

Datasheet Details

Part number
GS2GL, GS2AL
Manufacturer
Sunmate
File Size
361.62 KB
Datasheet
GS2AL-Sunmate.pdf
Description
SURFACE MOUNT SILICON RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: GS2GL, GS2AL.
Please refer to the document for exact specifications by model.
