GS2JAF, GS2AAF SURFACE MOUNT SILICON RECTIFIER DIODES

Sunmate

Description

GS2AAF - GS2MAF SURFACE MOUNT SILICON RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 2.0 A .

📥 Download Datasheet

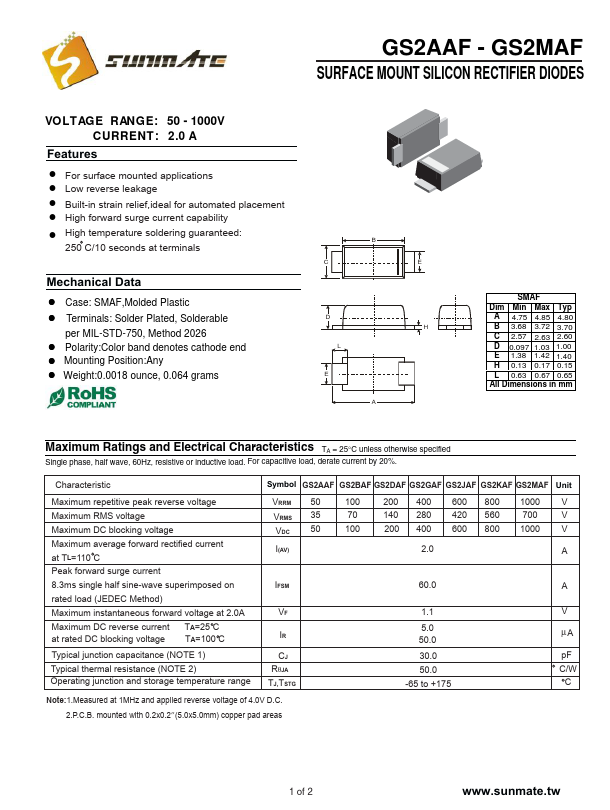

GS2JAF Datasheet Preview — This datasheet PDF includes multiple part numbers: GS2JAF, GS2AAF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GS2JAF, GS2AAF
Manufacturer: Sunmate
File Size: 343.73 KB
Datasheet: GS2AAF-Sunmate.pdf
Description: SURFACE MOUNT SILICON RECTIFIER DIODES
Note: This datasheet PDF includes multiple part numbers: GS2JAF, GS2AAF.
Please refer to the document for exact specifications by model.

Applications

* ! Low reverse leakage ! Built-in strain relief,ideal for automated placement ! High forward surge current capability ! High temperature soldering guaranteed: B 250 C/10 seconds at terminals C E Mechanical Data ! Case: SMAF,Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750
