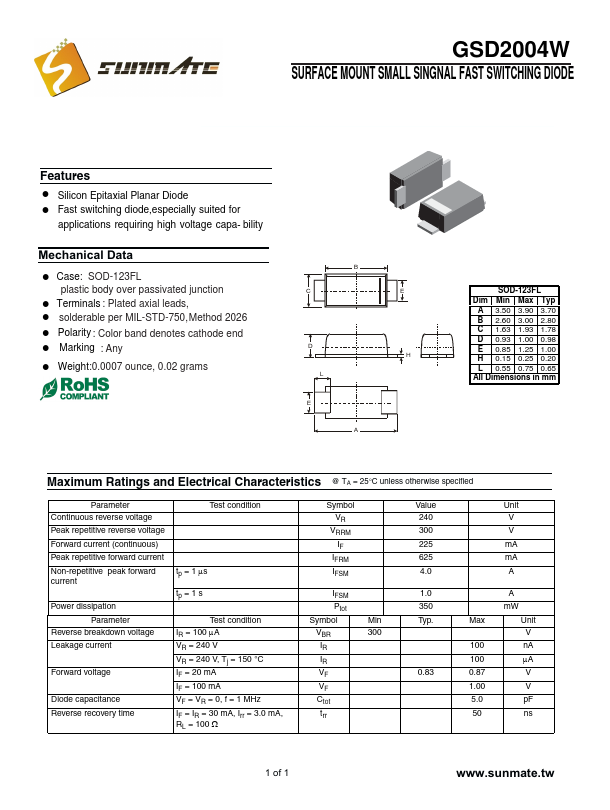

GSD2004W
Features
! Silicon Epitaxial Planar Diode ! Fast switching diode,especially suited for applications requiring high voltage capa- bility
Mechanical Data
! Case: SOD-123FL plastic body over passivated junction
! Terminals : Plated axial leads, ! solderable per MIL-STD-750,Method 2026 ! Polarity : Color band denotes cathode end ! Marking : Any
! Weight:0.0007 ounce, 0.02 grams
SOD-123FL Dim Min Max Typ
A 3.50 3.90 3.70 B 2.60 3.00 2.80 C 1.63 1.93 1.78 D 0.93 1.00 0.98 E 0.85 1.25 1.00 H 0.15 0.25 0.20 L 0.55 0.75 0.65 All Dimensions in mm
Maximum Ratings and Electrical Characteristics @ TA = 25°C unless otherwise specified
Parameter Continuous reverse voltage Peak repetitive reverse voltage Forward current (continuous) Peak repetitive forward current Non-repetitive peak forward current
Power dissipation Parameter
Reverse breakdown voltage Leakage current
Forward voltage
Diode capacitance Reverse recovery time
Test condition tp = 1 μs tp = 1 s
Test condition IR...
