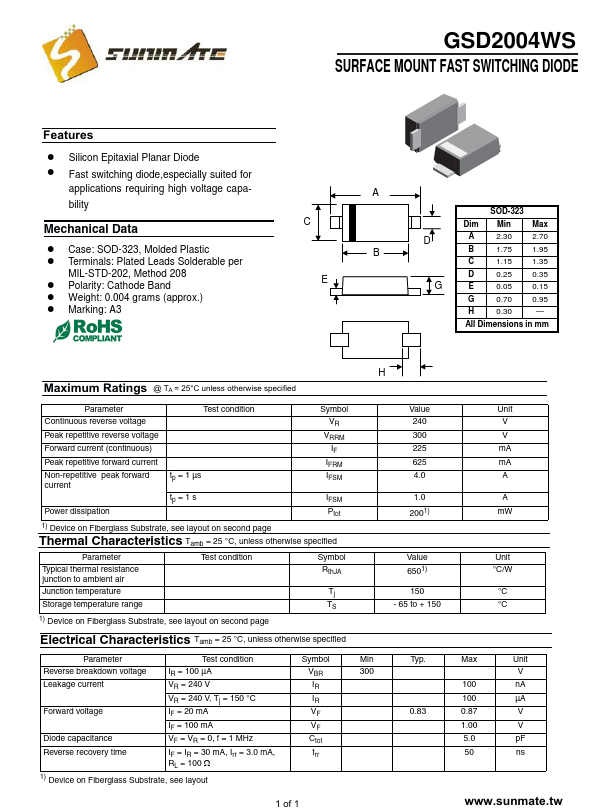

GSD2004WS
Features
! Silicon Epitaxial Planar Diode ! Fast switching diode,especially suited for applications requiring high voltage capa- bility
Mechanical Data
! Case: SOD-323, Molded Plastic ! Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.004 grams (approx.) ! Marking: A3
SOD-323
Dim Min
Max
2.30 2.70
1.75 1.95
1.15 1.35
0.25 0.35
0.05 0.15
0.70 0.95
- All Dimensions in mm
Maximum Ratings @ TA = 25°C unless otherwise specified
Parameter
Test condition
Symbol
Continuous reverse voltage Peak repetitive reverse voltage Forward current (continuous) Peak repetitive forward current Non-repetitive peak forward current tp = 1 µs
VR VRRM
IF IFRM IFSM
Power dissipation tp = 1 s
IFSM Ptot
1) Device on Fiberglass Substrate, see layout on second page
Thermal Characteristics Tamb = 25 °C, unless otherwise...
