KBL02, KBL005 SINGLE-PHASE BRIDGE RECTIFIER

Sunmate

Description

KBL005-KBL10 SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE RANGE: 50 - 1000V CURRENT: 4.0 A .

📥 Download Datasheet

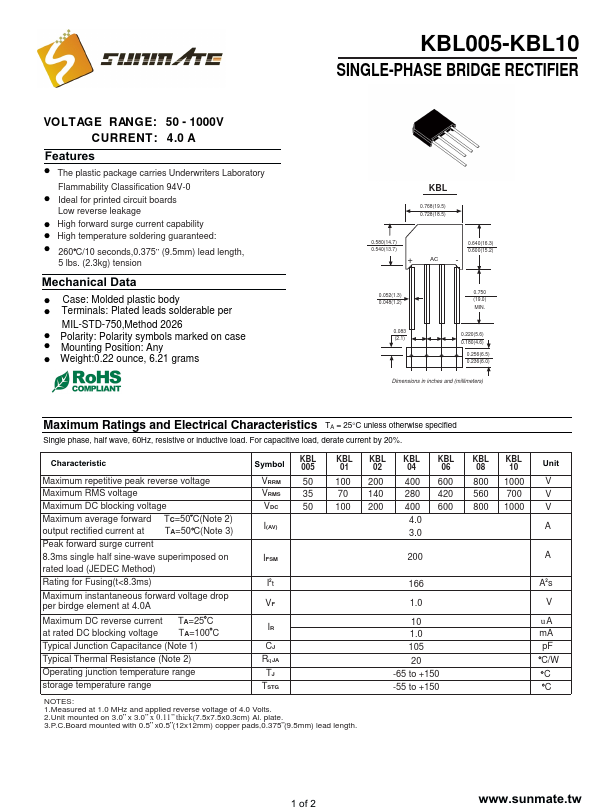

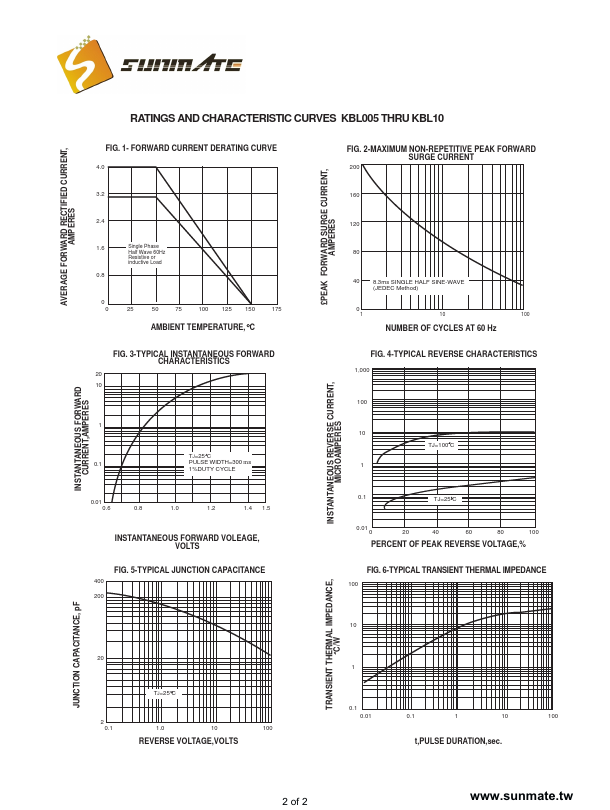

KBL02 Datasheet Preview — This datasheet PDF includes multiple part numbers: KBL02, KBL005. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: KBL02, KBL005
Manufacturer: Sunmate
File Size: 304.73 KB
Datasheet: KBL005-Sunmate.pdf
Description: SINGLE-PHASE BRIDGE RECTIFIER
Note: This datasheet PDF includes multiple part numbers: KBL02, KBL005.
Please refer to the document for exact specifications by model.

Features

* D The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 D Ideal for printed circuit boards Low reverse leakage D High forward surge current capability D High temperature soldering guaranteed: D 260 C/10 seconds,0.375” (9.5mm) lead length, 5 lbs. (2.3kg) tension Mechan
