KBL06 - SINGLE-PHASE BRIDGE RECTIFIER

This page provides the datasheet information for the KBL06, a member of the KBL005 SINGLE-PHASE BRIDGE RECTIFIER family.

Datasheet Summary

Features

  • D The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 D Ideal for printed circuit boards Low reverse leakage D High forward surge current capability D High temperature soldering guaranteed: D 260 C/10 seconds,0.375” (9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data D Case: Molded plastic body D Terminals: Plated leads solderable per MIL-STD-750,Method 2026 D Polarity: Polarity symbols marked on case D Mounting Position: Any D Weight:0.22 ounce, 6.21 gr.

📥 Download Datasheet

Datasheet preview – KBL06

Datasheet Details

Part number KBL06
Manufacturer Sunmate
File Size 304.73 KB
Description SINGLE-PHASE BRIDGE RECTIFIER
Datasheet download datasheet KBL06 Datasheet

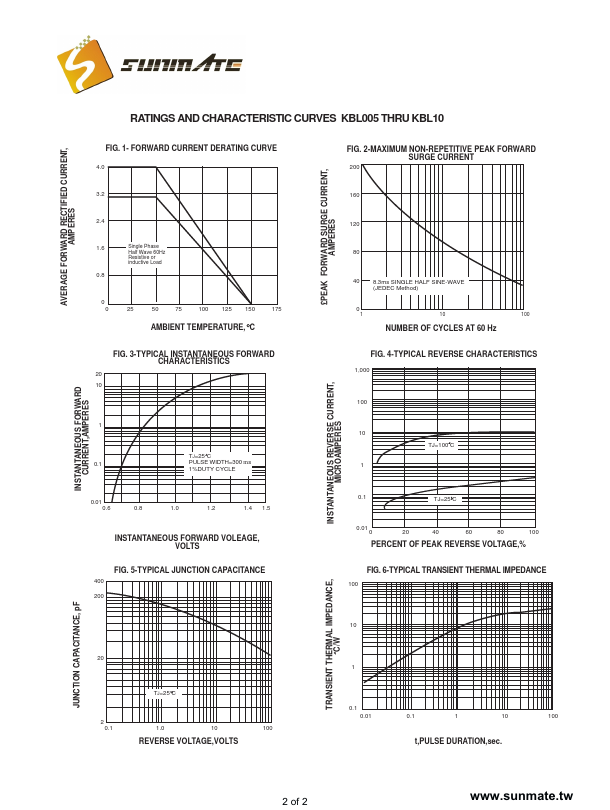

Additional preview pages of the KBL06 datasheet.

📁 Similar Datasheet

  • KBL06 - 4.0A Single-Phase Silicon Bridge Rectifier (SEP ELECTRONIC)
  • KBL06 - Silicon Bridge Rectifiers (GME)
  • KBL06 - SINGLE PHASE BRIDGE RECTIFIER (MIC)
  • KBL06 - Single-phase Silicon Bridge Rectifiers (SEMTECH)
  • KBL06 - Bridge Rectifiers (Fairchild Semiconductor)
  • KBL06 - Single-Phase Bridge Rectifier (Vishay)
  • KBL06 - SINGLE-PHASE SILICON BRIDGE (CHENG-YI)
  • KBL06 - SINGLE PHASE BRIDGE RECTIFIERS (Digitron Semiconductors)
  • KBL06 - GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIERS (CDIL)
  • KBL06 - Silicon Bridge Rectifiers (LGE)
Other Datasheets by Sunmate
  • KBL005 - SINGLE-PHASE BRIDGE RECTIFIER
  • KBL01 - SINGLE-PHASE BRIDGE RECTIFIER
  • KBL02 - SINGLE-PHASE BRIDGE RECTIFIER
  • KBL04 - SINGLE-PHASE BRIDGE RECTIFIER
  • KBL08 - SINGLE-PHASE BRIDGE RECTIFIER
  • KBL10 - SINGLE-PHASE BRIDGE RECTIFIER
  • KBL400 - SILICON BRIDGE RECTIFIERS
  • KBL401 - SILICON BRIDGE RECTIFIERS

Full PDF Text Transcription

Click to expand full text

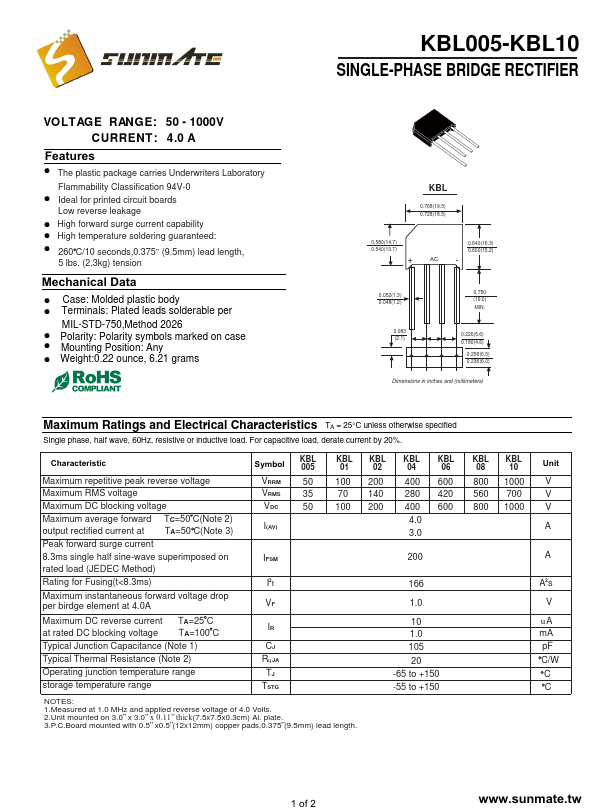

KBL005-KBL10 SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE RANGE: 50 - 1000V CURRENT: 4.0 A Features D The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 D Ideal for printed circuit boards Low reverse leakage D High forward surge current capability D High temperature soldering guaranteed: D 260 C/10 seconds,0.375” (9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data D Case: Molded plastic body D Terminals: Plated leads solderable per MIL-STD-750,Method 2026 D Polarity: Polarity symbols marked on case D Mounting Position: Any D Weight:0.22 ounce, 6.21 grams KBL 0.768(19.5) 0.728(18.5) 0.580(14.7) 0.540(13.7) 0.640(16.3) 0.600(15.2) + AC - 0.052(1.3) 0.048(1.2) 0.750 (19.0) MIN. 0.083 (2.1) 0.220(5.6) 0.180(4.6) 0.256(6.5) 0.236(6.
