KBL400 - SILICON BRIDGE RECTIFIERS

Datasheet Summary

Features

  • ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability ! Ideal for Printed Circuit Boards Mechanical Data ! Case: Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: As Marked on Body ! Weight: 5.6 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number KBL 0.768(19.5) 0.728(18.5) 0.580(14.7) 0.540(13.7) 0.640(16.3) 0.600(15.2) + AC - 0.052(1.3) 0.048(1.2) 0.750 (19.0) MIN.

📥 Download Datasheet

Datasheet preview – KBL400

Datasheet Details

Part number KBL400
Manufacturer Sunmate
File Size 437.22 KB
Description SILICON BRIDGE RECTIFIERS
Datasheet download datasheet KBL400 Datasheet

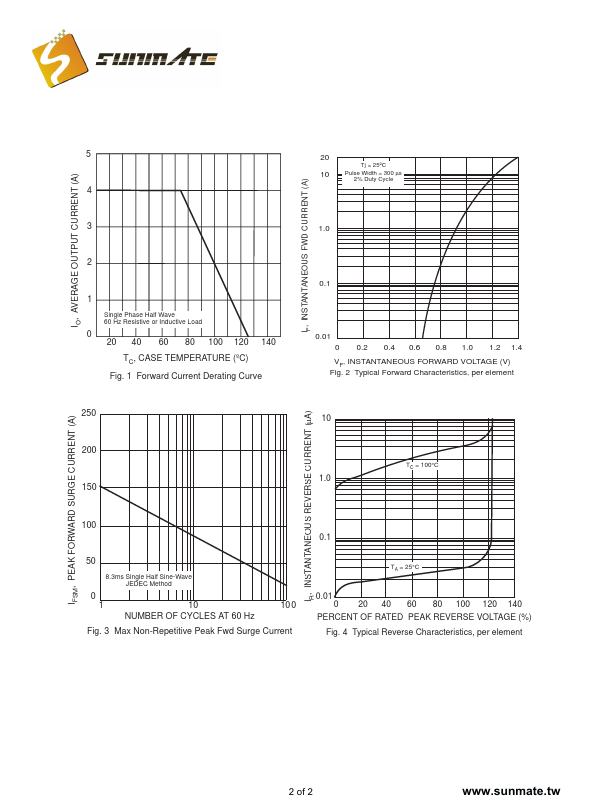

Additional preview pages of the KBL400 datasheet.

📁 Similar Datasheet

  • KBL400 - 4.0A SINGLE PHASE BRIDGE RECTIFIER (WON-TOP)
  • KBL400 - Silicon Bridge Rectifier (Bruckewell)
  • KBL400 - SILICON BRIDGE RECTIFIERS (EIC)
  • KBL400-G - (KBL400-G - KBL410-G) Silicon Bridge Rectifiers (Comchip Technology)
  • KBL4005 - Silicon Bridge Rectifiers (GME)
  • KBL4005 - 4.0A Single-Phase Silicon Bridge Rectifier (SEP ELECTRONIC)
  • KBL4005 - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (Sangdest Microelectronics)
  • KBL4005 - SINGLE PHASE SILICON BRIDGE RECTIFIER (KD)
  • KBL4005 - SINGLE-PHASE BRIDGE RECTIFIER (Suntan)
  • KBL4005 - Bridge Rectifier (First Silicon)
Other Datasheets by Sunmate
  • KBL401 - SILICON BRIDGE RECTIFIERS
  • KBL402 - SILICON BRIDGE RECTIFIERS
  • KBL404 - SILICON BRIDGE RECTIFIERS
  • KBL406 - SILICON BRIDGE RECTIFIERS
  • KBL408 - SILICON BRIDGE RECTIFIERS
  • KBL410 - SILICON BRIDGE RECTIFIERS
  • KBL005 - SINGLE-PHASE BRIDGE RECTIFIER
  • KBL01 - SINGLE-PHASE BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text

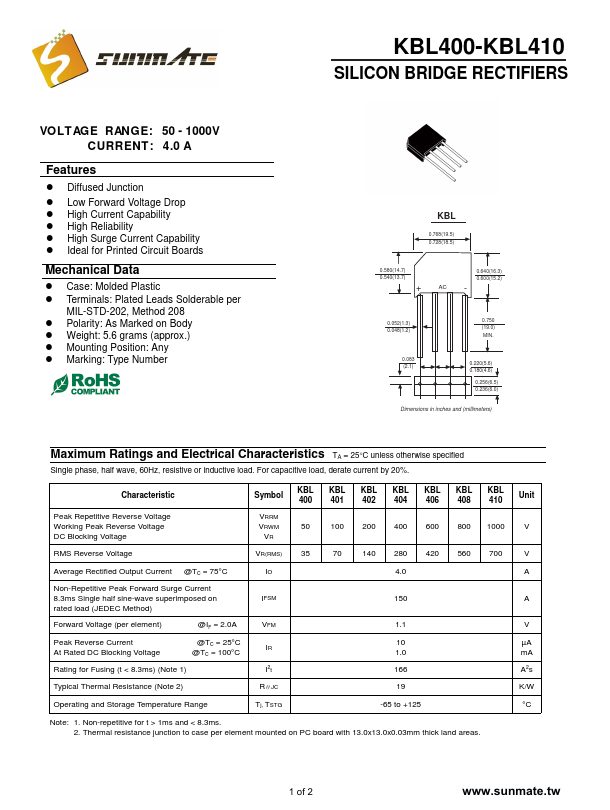

KBL400-KBL410 SILICON BRIDGE RECTIFIERS VOLTAGE RANGE: 50 - 1000V CURRENT: 4.0 A Features ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability ! Ideal for Printed Circuit Boards Mechanical Data ! Case: Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: As Marked on Body ! Weight: 5.6 grams (approx.) ! Mounting Position: Any ! Marking: Type Number KBL 0.768(19.5) 0.728(18.5) 0.580(14.7) 0.540(13.7) 0.640(16.3) 0.600(15.2) + AC - 0.052(1.3) 0.048(1.2) 0.750 (19.0) MIN. 0.083 (2.1) 0.220(5.6) 0.180(4.6) 0.256(6.5) 0.236(6.
