KBL402, KBL400 SILICON BRIDGE RECTIFIERS

Sunmate

Description

KBL400-KBL410 SILICON BRIDGE RECTIFIERS VOLTAGE RANGE: 50 - 1000V CURRENT: 4.0 A .

📥 Download Datasheet

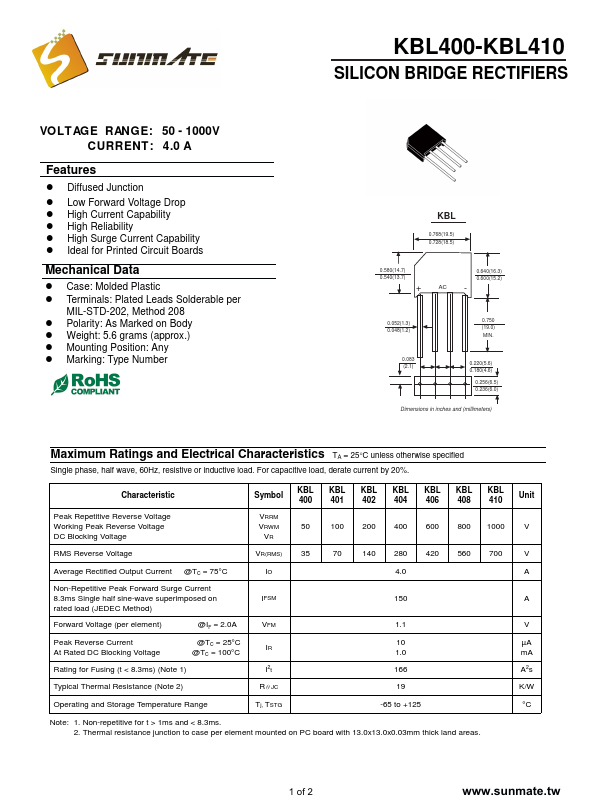

KBL402 Datasheet Preview — This datasheet PDF includes multiple part numbers: KBL402, KBL400. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: KBL402, KBL400
Manufacturer: Sunmate
File Size: 437.22 KB
Datasheet: KBL400-Sunmate.pdf
Description: SILICON BRIDGE RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: KBL402, KBL400.
Please refer to the document for exact specifications by model.

Features

* ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability ! Ideal for Printed Circuit Boards Mechanical Data ! Case: Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: As Marked on Body ! Weigh
