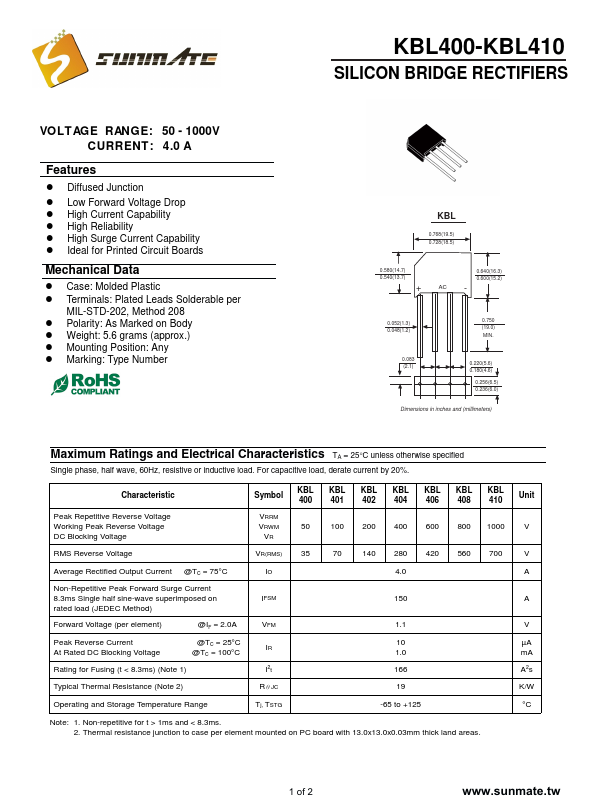

KBL410, KBL400 - SILICON BRIDGE RECTIFIERS

Sunmate

Datasheet Details

Part number	KBL410, KBL400
Manufacturer	Sunmate
File Size	437.22 KB
Description	SILICON BRIDGE RECTIFIERS
Datasheet	KBL400-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: KBL410, KBL400. Please refer to the document for exact specifications by model.

! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability ! Ideal for Printed Circuit Boards Mechanical Data ! Case: Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: As Marked on Body ! Weight: 5.6 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number KBL 0.768(19.5) 0.728(18.5) 0.580(14.7) 0.540(13.7) 0.640(16.3) 0.600(15.2) + AC - 0.052(1.3) 0.048(1.2) 0.750 (19.0) MIN.
