LB10S - SINGLE-PHASE SURFACE MOUNT BRIDGE RECTIFIER

Datasheet Summary

Features

  • D Low Profile: Typical height of 1.4mm D Ideal for automated placement D High surge current capability Mechanical Data D Case:SOPA-4 D Epoxy meets UL-94V-0 Flammability rating D Terminals:Matte tin plated ldads, solderable per D J-STD-002B and JESD22-B102D D Polarity:As markde on body SOPA-4  Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic.

📥 Download Datasheet

Datasheet preview – LB10S

Datasheet Details

Part number LB10S
Manufacturer Sunmate
File Size 377.43 KB
Description SINGLE-PHASE SURFACE MOUNT BRIDGE RECTIFIER
Datasheet download datasheet LB10S Datasheet
Additional preview pages of the LB10S datasheet.

📁 Similar Datasheet

  • LB10S - Low Profile Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier (GOODARK)
  • LB10S - 0.8A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER (WON-TOP)
  • LB10S - SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER (First Silicon)
  • LB10S - 1.0 Amp Single Phase Glass Passivated Bridge Rectifier (MCC)
  • LB10SA - Low Profile Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier (GOOD-ARK)
  • LB10SB - Low Profile Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier (GOOD-ARK)
  • LB10SL - Low Profile Miniature Single Phase Surface Mount Bridge Rectifiers (GOOD-ARK)
  • LB10-10A05 - power converter (MORNSUN)
  • LB10-10A12 - power converter (MORNSUN)
  • LB10-10A15 - power converter (MORNSUN)
Other Datasheets by Sunmate

    Full PDF Text Transcription

    Click to expand full text

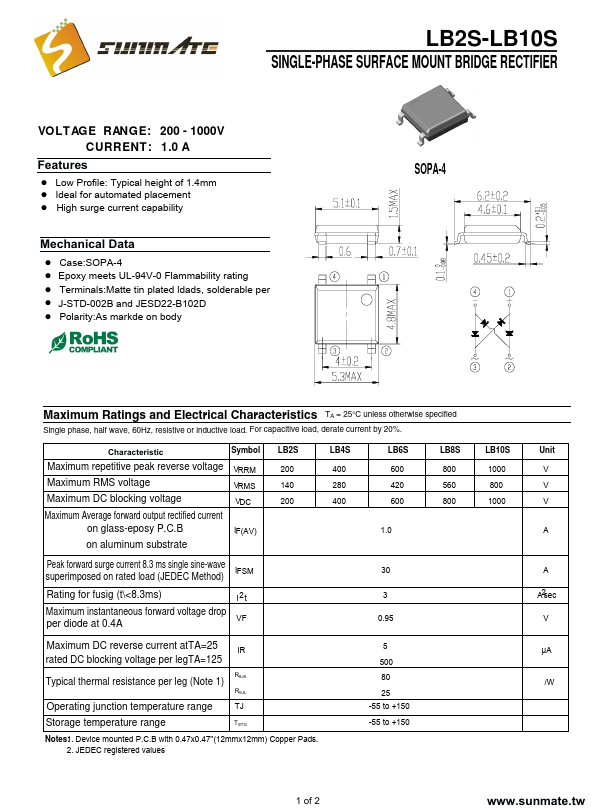

    LB2S-LB10S SINGLE-PHASE SURFACE MOUNT BRIDGE RECTIFIER VOLTAGE RANGE: 200 - 1000V CURRENT: 1.0 A Features D Low Profile: Typical height of 1.4mm D Ideal for automated placement D High surge current capability Mechanical Data D Case:SOPA-4 D Epoxy meets UL-94V-0 Flammability rating D Terminals:Matte tin plated ldads, solderable per D J-STD-002B and JESD22-B102D D Polarity:As markde on body SOPA-4  Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Symbol Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage VRRM VRMS VDC Maximum Average forward output rectified current on glass-eposy P.C.
