LB8S - SINGLE-PHASE SURFACE MOUNT BRIDGE RECTIFIER

Sunmate

Datasheet Details

Part number	LB8S
Manufacturer	Sunmate
File Size	377.43 KB
Description	SINGLE-PHASE SURFACE MOUNT BRIDGE RECTIFIER
Datasheet	LB8S-Sunmate.pdf

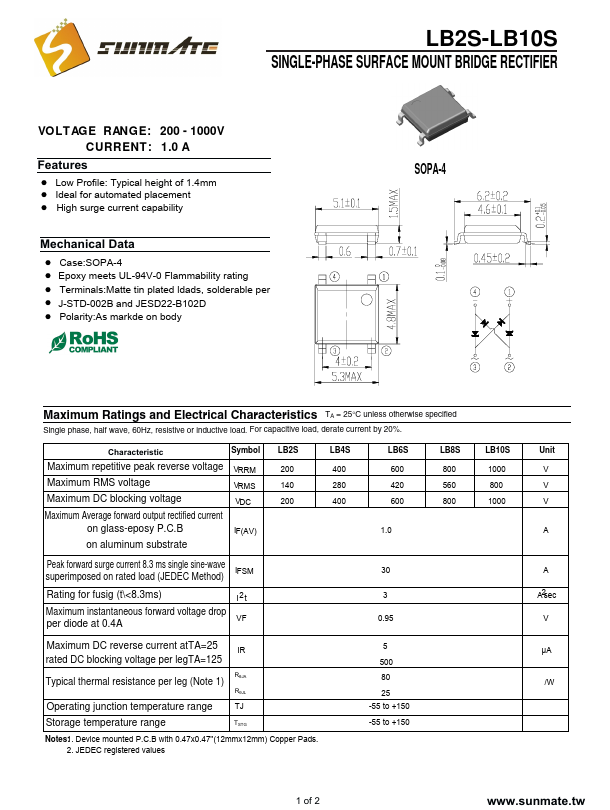

D Low Profile: Typical height of 1.4mm D Ideal for automated placement D High surge current capability Mechanical Data D Case:SOPA-4 D Epoxy meets UL-94V-0 Flammability rating D Terminals:Matte tin plated ldads, solderable per D J-STD-002B and JESD22-B102D D Polarity:As markde on body SOPA-4 Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic.
