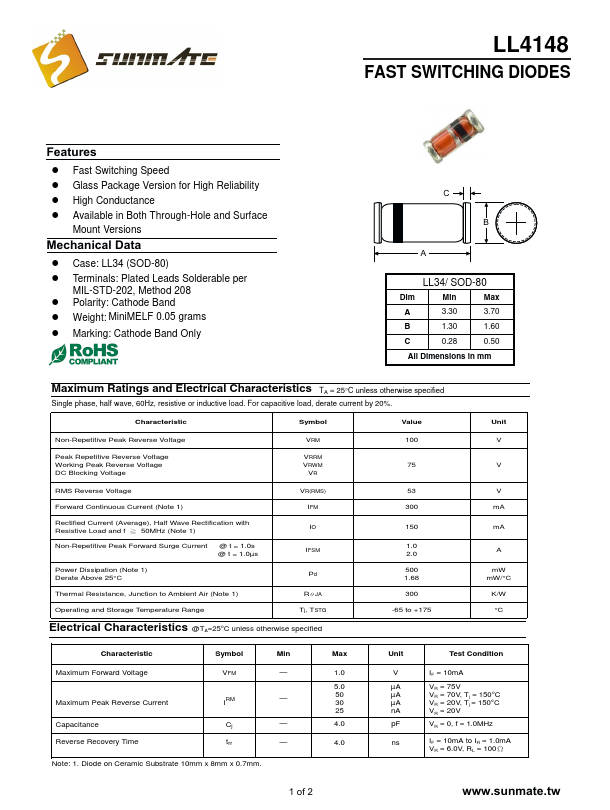

LL4148
Features
! Fast Switching Speed ! G las s Pack a g e V e rsion for H igh R e lia b ility ! High Conductance ! Available in Both Through-Hole and Surface
Mount Versions
Mechanical Data
! Case: LL34 (SOD-80) ! Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: Mini MELF 0.05 grams ! Marking: Cathode Band Only
LL34/ SOD-80
Dim
Min
Max
All Dimensions in mm
Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic
Symbol
Value
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
VRRM
VRWM
RMS Reverse Voltage
VR(RMS)
Forward Continuous Current (Note...
Representative LL4148 image (package may vary by manufacturer)
