LL4150 - SURFACE MOUNT FAST SWITCHING DIODE

LL4150 Description

LL4150 SURFACE MOUNT FAST SWITCHING DIODE .

LL4150 Applications

* Ultra Fast Switching
* High Reliability
* High Conductance Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, ! Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. ) C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.

📥 Download Datasheet

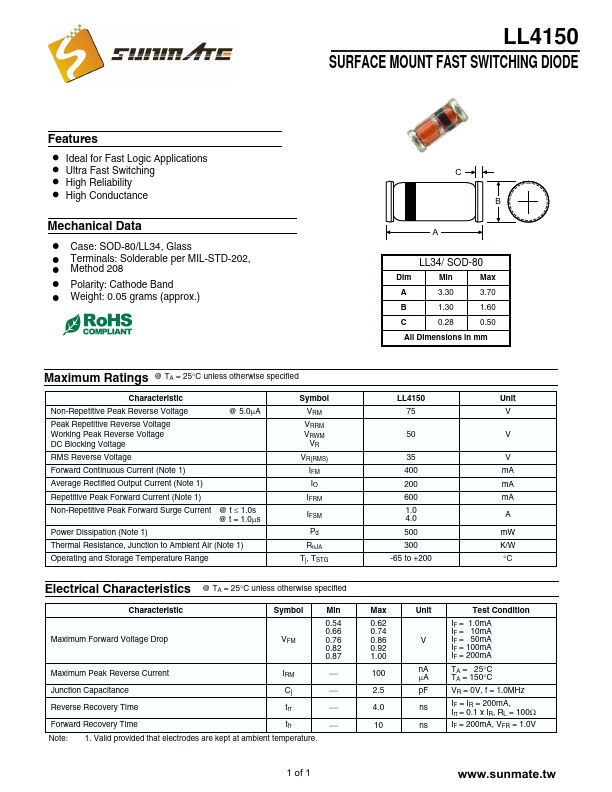

Preview of LL4150 PDF

Datasheet Details

Part number
LL4150
Manufacturer
Sunmate
File Size
501.11 KB
Datasheet
LL4150-Sunmate.pdf
Description
SURFACE MOUNT FAST SWITCHING DIODE
