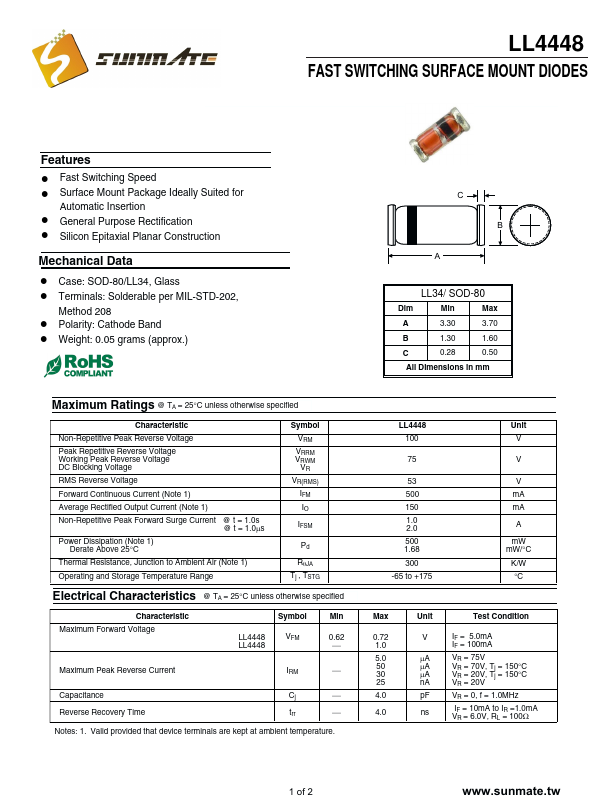

! Fast Switching Speed ! Surface Mount Package Ideally Suited for
Automatic Insertion ! General Purpose Rectification ! Silicon Epitaxial Planar Construction
Mechanical Data
! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202,
Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. )
C B
A
LL34/ SOD-80
Dim
Min
Max
A
3.30
3.70
B
1.30
1.60
C
0.28
0.50
All Dimensions in mm
Maximum Ratings @ TA = 25°C unless otherwise specified
Characteristic

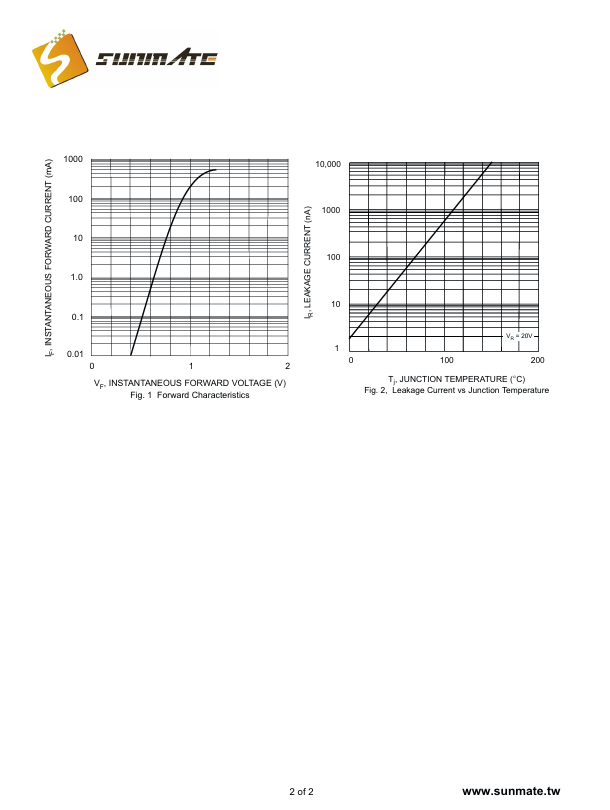

Non-Repetitive P.
