LL4451, LL4149 - SILICON EPITAXIAL PLANAR DIODES

Sunmate

📥 Download Datasheet

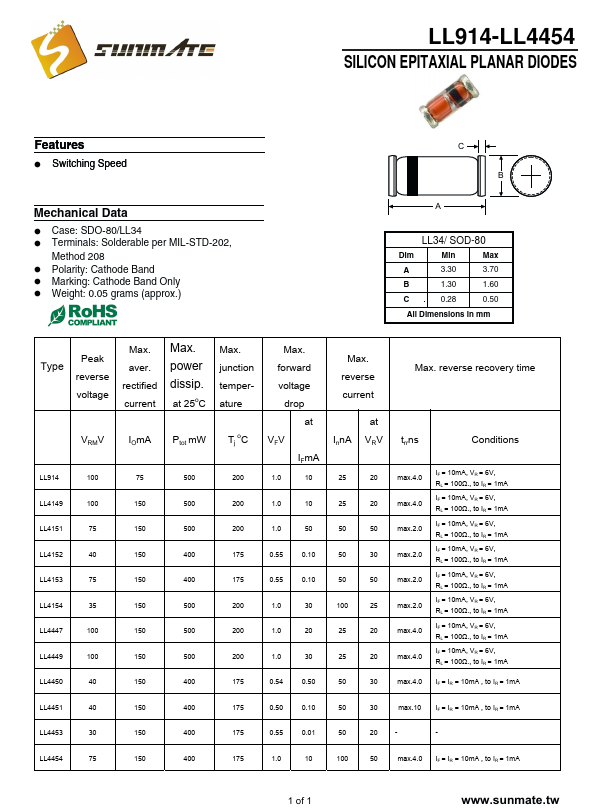

LL4451 Datasheet Preview — This datasheet PDF includes multiple part numbers: LL4451, LL4149. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LL4451, LL4149
Manufacturer	Sunmate
File Size	291.48 KB
Description	SILICON EPITAXIAL PLANAR DIODES
Datasheet	LL4149-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: LL4451, LL4149. Please refer to the document for exact specifications by model.

LL4451 Product details

Features

Switching Speed C B Mechanical Data.
Case: SDO-80/LL34.
Terminals: Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Marking: Cathode Band Only.
Weight: 0.05 grams (approx. ) A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Type Peak reverse voltage Max. aver. rectified current Max. power dissip. at 25oC VRMV IOmA Ptot mW LL914 100 75 500 LL4149 100 150 500 LL4151 75 150 500 LL4152.
