LL700A - SURFACE MOUNT FAST SWITCHING DIODE

This page provides the datasheet information for the LL700A, a member of the LL700 SURFACE MOUNT FAST SWITCHING DIODE family.

Datasheet Summary

Features

  • ! Low forward rise voltage (VF) and satisfactory ! wave detection efficiency ! Small temperature coefficient of forward characteristic ! Extremely low reverse current IR Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. ) C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Parameter Symbol.

📥 Download Datasheet

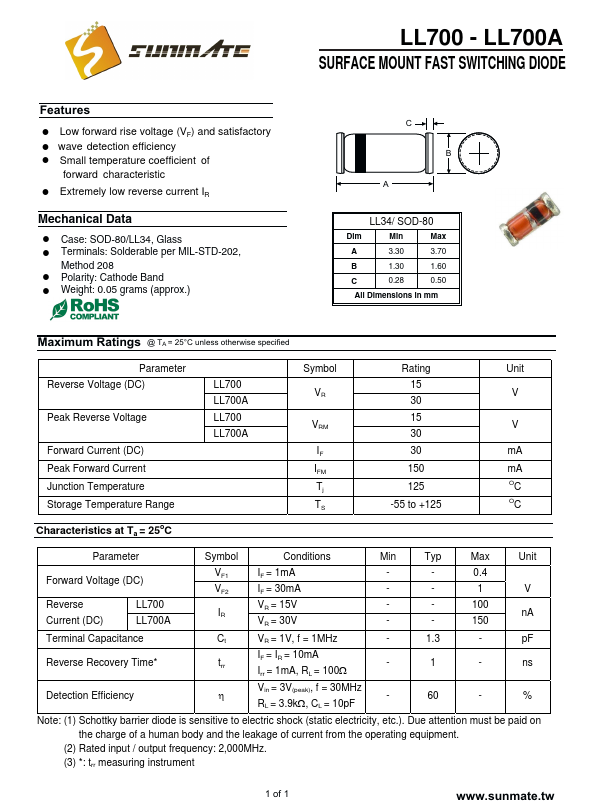

Datasheet preview – LL700A

Datasheet Details

Part number LL700A
Manufacturer Sunmate
File Size 1.16 MB
Description SURFACE MOUNT FAST SWITCHING DIODE
Datasheet download datasheet LL700A Datasheet
Additional preview pages of the LL700A datasheet.

📁 Similar Datasheet

  • LL700A - SMALL SIGNAL SCHOTTKY DIODES (JINAN JINGHENG)
  • LL700A - SILICON EXPITAXIAL PLANAR TYPE SCHOTTKY BARRIER DIODES (SEMTECH ELECTRONICS)
  • LL700 - SMALL SIGNAL SCHOTTKY DIODES (JINAN JINGHENG)
  • LL700 - SILICON EXPITAXIAL PLANAR TYPE SCHOTTKY BARRIER DIODES (SEMTECH ELECTRONICS)
Other Datasheets by Sunmate
  • LL700 - SURFACE MOUNT FAST SWITCHING DIODE

Full PDF Text Transcription

Click to expand full text
LL700 - LL700A SURFACE MOUNT FAST SWITCHING DIODE Features ! Low forward rise voltage (VF) and satisfactory ! wave detection efficiency ! Small temperature coefficient of forward characteristic ! Extremely low reverse current IR Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx.) C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.
