Datasheet Specifications
- Part number
- LS4154
- Manufacturer
- Sunmate
- File Size
- 0.99 MB
- Datasheet
- LS4154-Sunmate.pdf
- Description
- SURFACE MOUNT FAST SWITCHING DIODE
Description

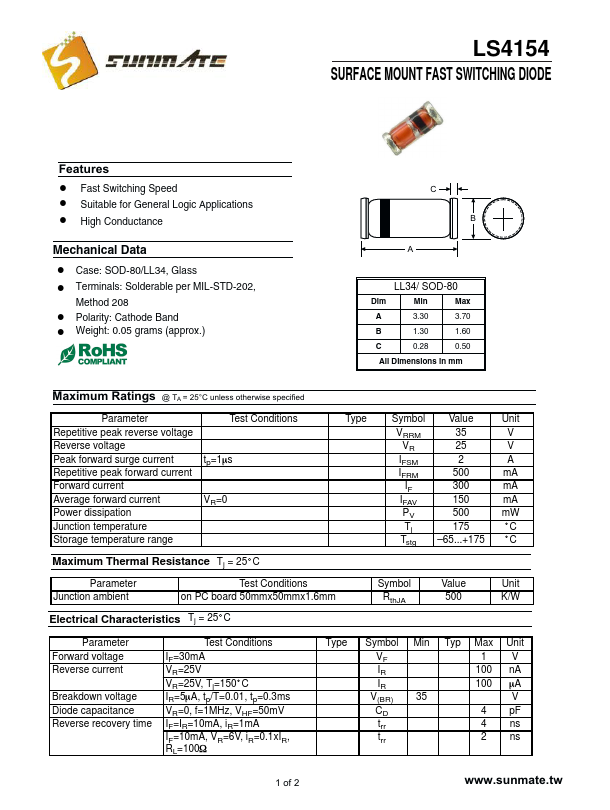

LS4154 SURFACE MOUNT FAST SWITCHING DIODE .
Applications
* ! High Conductance Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. ) C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Maximum Ratings @ TA = 25°LS4154 Distributors
