MB2510 SINGLE-PHASE SILICON BRIDGE RECTIFIER

MB2510 Features

* ! Metal case for Maximum Heat Dissipation ! Surge overload ratings-400 Amperes ! Low forward voltage drop Mechanical Data ! Case: Metal, electrically isolated ! Epoxy: UL 94V-0 rate flame retardant ! Polarity: As marked ! Mounting position: Any ! Weight: 30 grams MB-25 (1.415.52)MAX. .480(12.2) .42

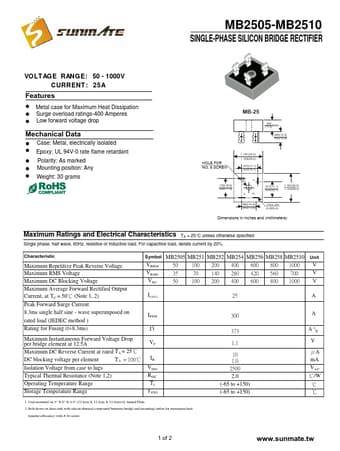

MB2505-Sunmate.pdf

MB2510 Datasheet Preview — This datasheet PDF includes multiple part numbers: MB2510, MB2505. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MB2510, MB2505

Manufacturer:

Sunmate

File Size:

434.77 KB

Description:

Single-phase silicon bridge rectifier.

Note:

This datasheet PDF includes multiple part numbers: MB2510, MB2505.
Please refer to the document for exact specifications by model.
