MB254W - SINGLE-PHASE SILICON BRIDGE RECTIFIER

This page provides the datasheet information for the MB254W, a member of the MB2505W SINGLE-PHASE SILICON BRIDGE RECTIFIER family.

Datasheet Summary

Features

  • D Metal case for Maximum Heat Dissipation D Surge overload ratings-400 Amperes D Low forward voltage drop Mechanical Data D Case: Metal, electrically isolated D Epoxy: UL 94V-0 rate flame retardant D Lead: MIL-STD-202E, Method 208 guaranteed D Polarity: As marked D Mounting position: Any D Weight: 30 grams MB-25W TYP Dimensions in inches and (millimeters) Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Symbol MB2505W MB251W MB252W MB254W MB256W MB258W MB2510W Unit Maxi.

📥 Download Datasheet

Datasheet preview – MB254W

Datasheet Details

Part number MB254W
Manufacturer Sunmate
File Size 1.30 MB
Description SINGLE-PHASE SILICON BRIDGE RECTIFIER
Datasheet download datasheet MB254W Datasheet
Additional preview pages of the MB254W datasheet.

📁 Similar Datasheet

  • MB254W - SINGLE-PHASE SILICON BRIDGE RECTIFIER (DC COMPONENTS)
  • MB254W - SINGLE-PHASE BRIDGE RECTIFIER (MIC)
  • MB254W - 25A Single-Phase Bridge Rectifier (TAITRON)
  • MB254W - 25 Amp Single Phase Bridge Rectifier (MCC)
  • MB254W - Single-Phase Bridge Rectifier (MEI SEMI)
  • MB254W - SINGLE-PHASE BRIDGE RECTIFIER (MIC)
  • MB254W - SINGLE-PHASE BRIDGE RECTIFIER (PFS)
  • MB254 - SINGLE-PHASE BRIDGE RECTIFIER (MIC)
  • MB254 - 25A Single-Phase Bridge Rectifier (TAITRON)
  • MB254 - (MB2505 - MB2510) SINGLE-PHASE SILICON BRIDGE RECTIFIER (Rectron Semiconductor)
Other Datasheets by Sunmate
  • MB254 - SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • MB2505 - SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • MB2505W - SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • MB251 - SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • MB2510 - SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • MB2510W - SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • MB251W - SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • MB252 - SINGLE-PHASE SILICON BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text

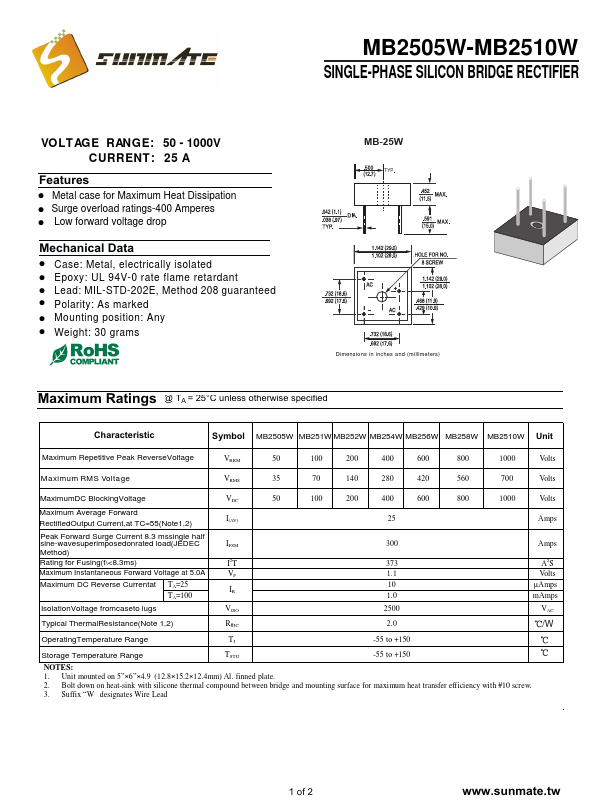

MB2505W-MB2510W SINGLE-PHASE SILICON BRIDGE RECTIFIER VOLTAGE RANGE: 50 - 1000V CURRENT: 25 A Features D Metal case for Maximum Heat Dissipation D Surge overload ratings-400 Amperes D Low forward voltage drop Mechanical Data D Case: Metal, electrically isolated D Epoxy: UL 94V-0 rate flame retardant D Lead: MIL-STD-202E, Method 208 guaranteed D Polarity: As marked D Mounting position: Any D Weight: 30 grams MB-25W TYP Dimensions in inches and (millimeters) Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Symbol MB2505W MB251W MB252W MB254W MB256W MB258W MB2510W Unit Maximum Repetitive Peak ReverseVoltage VRRM 50 100 200 400 600 800 1000 Volts Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 Volts MaximumDC BlockingVoltage VDC 50 100 200
