MB258 - SINGLE-PHASE SILICON BRIDGE RECTIFIER

Product Overview

Sunmate

Part number	MB258
Manufacturer	Sunmate
File Size	434.77 KB
Description	SINGLE-PHASE SILICON BRIDGE RECTIFIER
Datasheet	MB258 Datasheet
Note	This datasheet PDF includes multiple part numbers: MB258, MB2505. Please refer to the document for exact specifications by model.

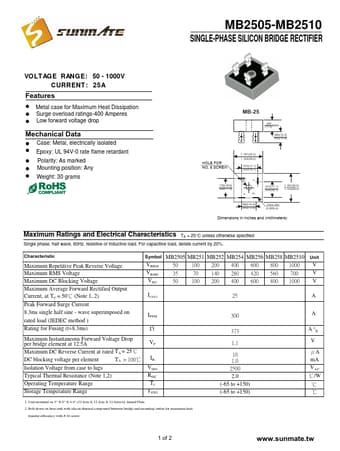

Additional preview pages of the MB258 datasheet.

! Metal case for Maximum Heat Dissipation ! Surge overload ratings-400 Amperes ! Low forward voltage drop Mechanical Data ! Case: Metal, electrically isolated ! Epoxy: UL 94V-0 rate flame retardant ! Polarity: As marked ! Mounting position: Any ! Weight: 30 grams MB-25 (1.415.52)MAX. .480(12.2) .425(10.8) HOLE FOR NO. 8 SCREW 1.181(30.0) 1.102(28.0) .673(17.1) .633(16.1) .732(18.6) .692(17.6) AC + AC .673(17.1) .633(16.1) 1.181(30.0) 1.102(28.0) .582(14.8) .543(13.8) .033X.250 (0.8X6.4).
