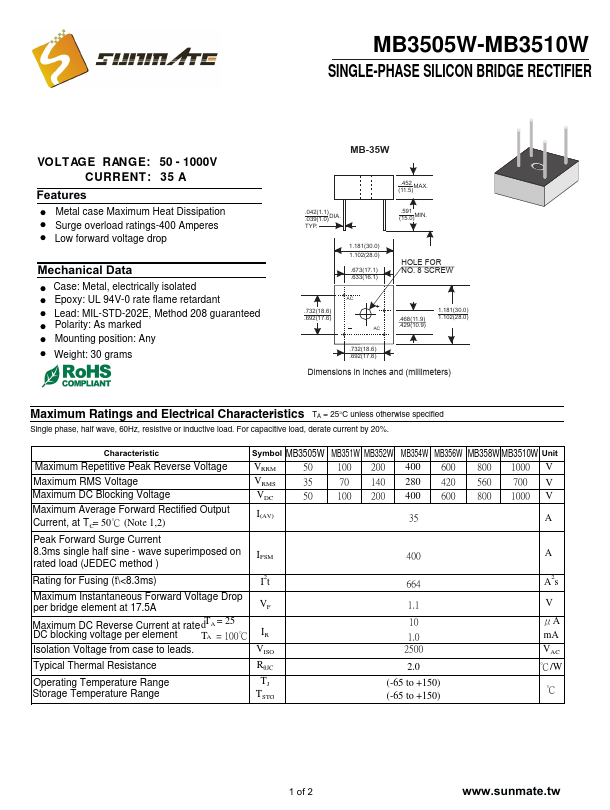

MB3510W
Features
D Metal case Maximum Heat Dissipation D Surge overload ratings-400 Amperes D Low forward voltage drop
Mechanical Data
D Case: Metal, electrically isolated D Epoxy: UL 94V-0 rate flame retardant D Lead: MIL-STD-202E, Method 208 guaranteed D Polarity: As marked D Mounting position: Any D Weight: 30 grams
MB-35W
(1.415.52)MAX.
.042(1.1) .039(1.0)
DIA.
TYP.
1.181(30.0) 1.102(28.0)
.673(17.1) .633(16.1)
(.1559.10)MIN.
HOLE FOR NO. 8 SCREW
.732(18.6) .692(17.6)
+
1.181(30.0)
.468(11.9) 1.102(28.0)
.429(10.9)
.732(18.6) .692(17.6)
Dimensions in inches and (millimeters)

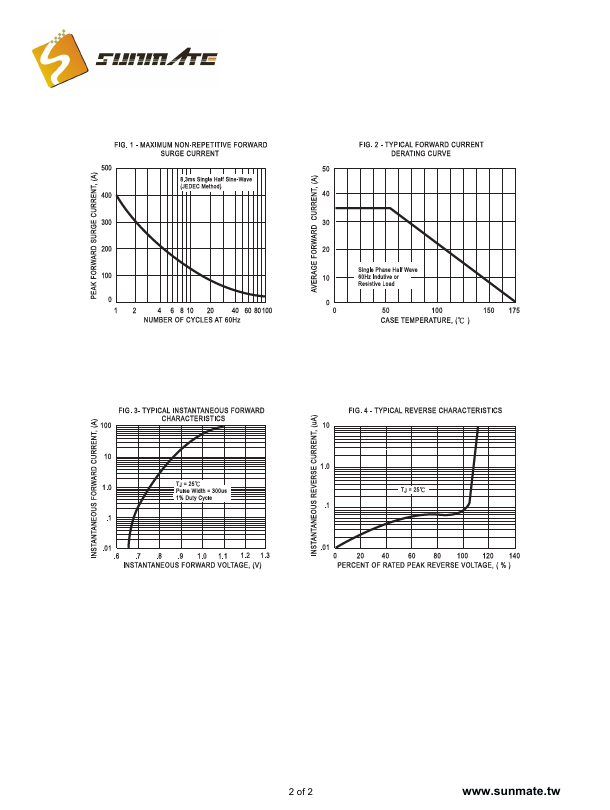

Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic
Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Output Current, at TC= 50 (Note 1,2)
Symbol MB3505W MB351W MB352W MB354W...
