MB354W, MB3505W SINGLE-PHASE SILICON BRIDGE RECTIFIER

Sunmate

Description

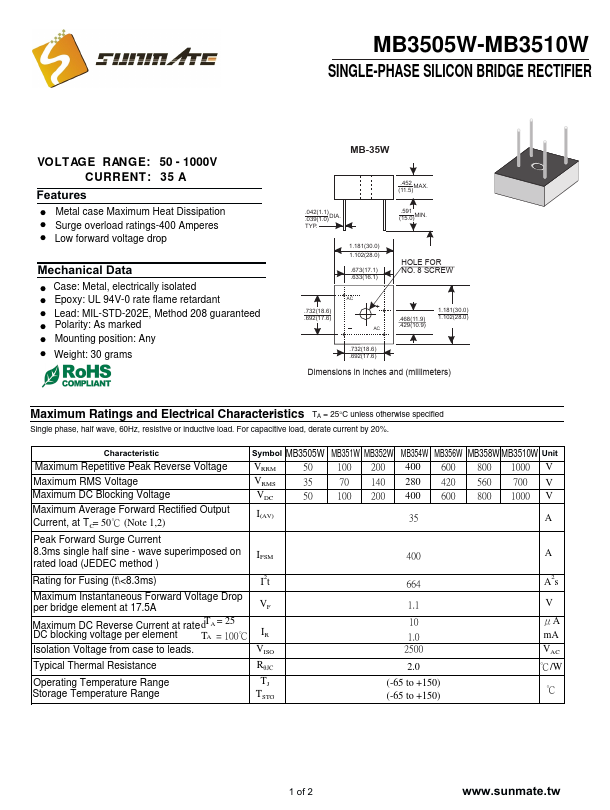

MB3505W-MB3510W SINGLE-PHASE SILICON BRIDGE RECTIFIER VOLTAGE RANGE: 50 - 1000V CURRENT: 35 A .

📥 Download Datasheet

MB354W Datasheet Preview — This datasheet PDF includes multiple part numbers: MB354W, MB3505W. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MB354W, MB3505W
Manufacturer: Sunmate
File Size: 559.59 KB
Datasheet: MB3505W-Sunmate.pdf
Description: SINGLE-PHASE SILICON BRIDGE RECTIFIER
Note: This datasheet PDF includes multiple part numbers: MB354W, MB3505W.
Please refer to the document for exact specifications by model.

Features

* D Metal case Maximum Heat Dissipation D Surge overload ratings-400 Amperes D Low forward voltage drop Mechanical Data D Case: Metal, electrically isolated D Epoxy: UL 94V-0 rate flame retardant D Lead: MIL-STD-202E, Method 208 guaranteed D Polarity: As marked D Mounting position: Any D Weight: 30 gr
