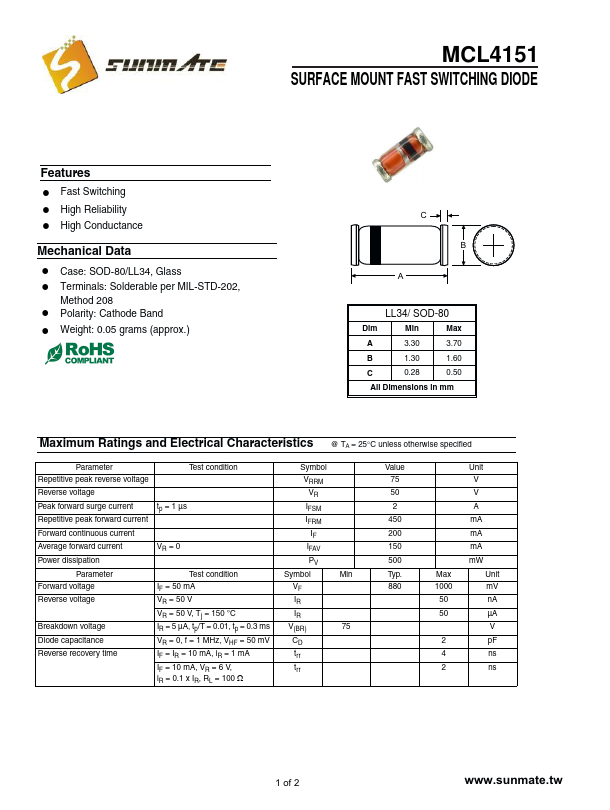

MCL4151 - SURFACE MOUNT FAST SWITCHING DIODE

Datasheet Summary

Features

! Fast Switching ! High Reliability ! High Conductance Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. ) C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Maximum Ratings and Electrical Characteristics @ TA = 25°C unless otherwise specified Parameter Test condition Symbol Repetitive peak reverse voltage VRRM Reverse voltage VR Peak for.
