MCL4448 - SURFACE MOUNT FAST SWITCHING DIODE

Datasheet Summary

Features

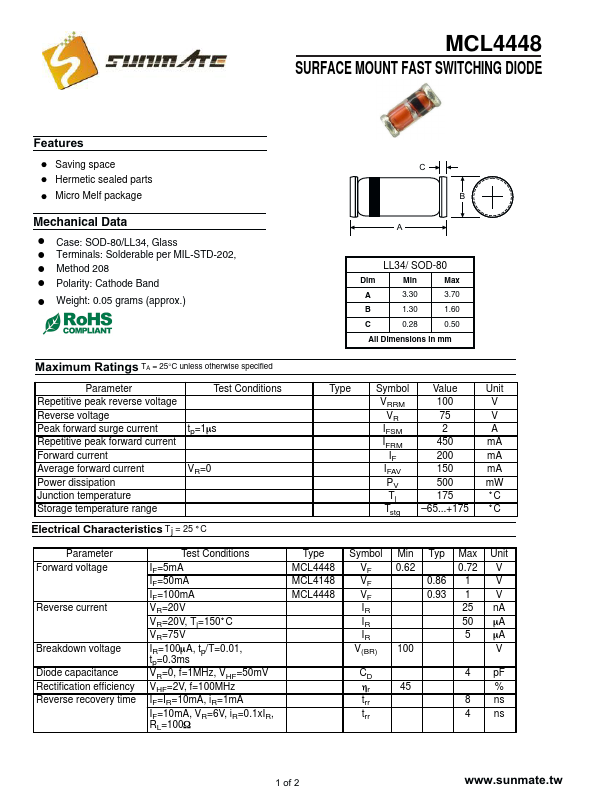

  • D Saving space D Hermetic sealed parts D Micro Melf package Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, ! Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. ) C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Maximum Ratings TA = 25°C unless otherwise specified Parameter Repetitive peak reverse voltage Reverse voltage Peak forward surge current Repetitive peak forward current Forward curr.

📥 Download Datasheet

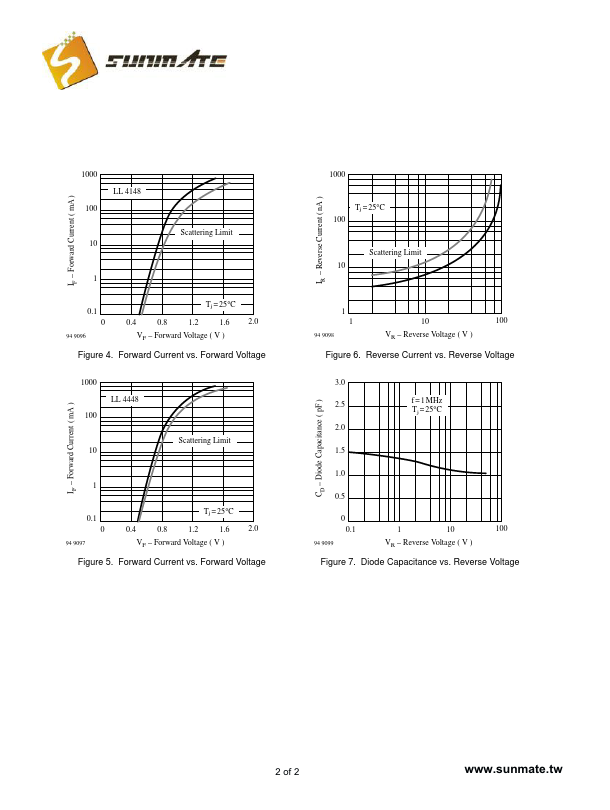

Datasheet preview – MCL4448

Datasheet Details

Part number MCL4448
Manufacturer Sunmate
File Size 1.20 MB
Description SURFACE MOUNT FAST SWITCHING DIODE
Datasheet download datasheet MCL4448 Datasheet
