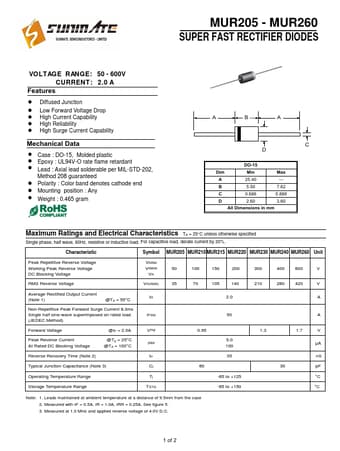

MUR260, MUR205 - SUPER FAST RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	MUR260, MUR205
Manufacturer	Sunmate
File Size	1.07 MB
Description	SUPER FAST RECTIFIER DIODES
Datasheet	MUR205-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: MUR260, MUR205. Please refer to the document for exact specifications by model.

! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case : DO-15, Molded plastic ! Epoxy : UL94V-O rate flame retardant ! Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed ! Polarity : Color band denotes cathode end ! Mounting position : Any ! Weight : 0.465 gram ABA D DO-15 Dim Min Max A 25.40.
B 5.50 7.62 C 0.686 0.889 D 2.60 3.60 All Dimensions in mm C Maximum.
