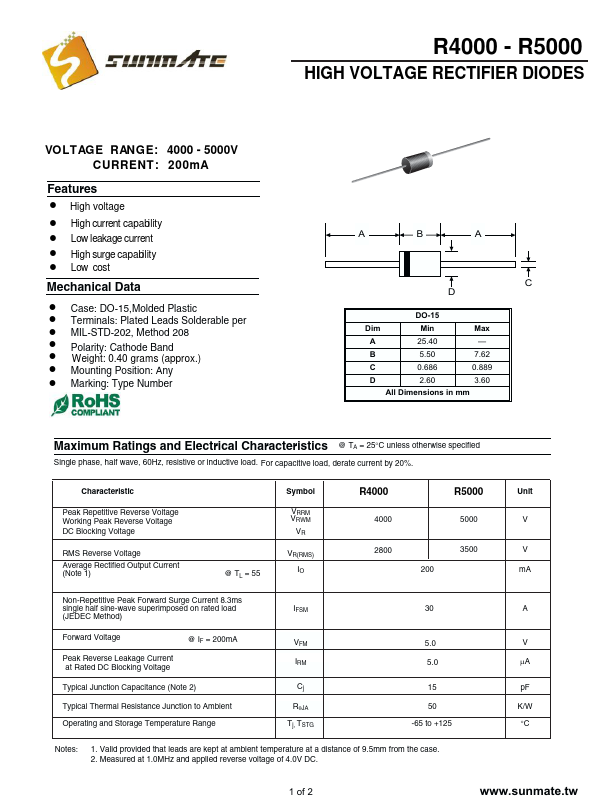

R4000 - High voltage diode

Sunmate

Datasheet Details

! High voltage ! High current capability ! Low leakage current ! High surge capability ! Low cost Mechanical Data ! Case: DO-15,Molded Plastic ! Terminals: Plated Leads Solderable per ! MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.40 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number A B A C D DO-15 Dim Min Max A 25.40.
B 5.50 7.62 C 0.686 0.889 D 2.60 3.60 All Dimensions in mm Maximum Ratings and Electrical Characteristics @ TA = 25°C.
