R5000 High voltage diode

Sunmate

Description

R4000 - R5000 HIGH VOLTAGE RECTIFIER DIODES VOLTAGE RANGE: 4000 - 5000V CURRENT: 200m A .

📥 Download Datasheet

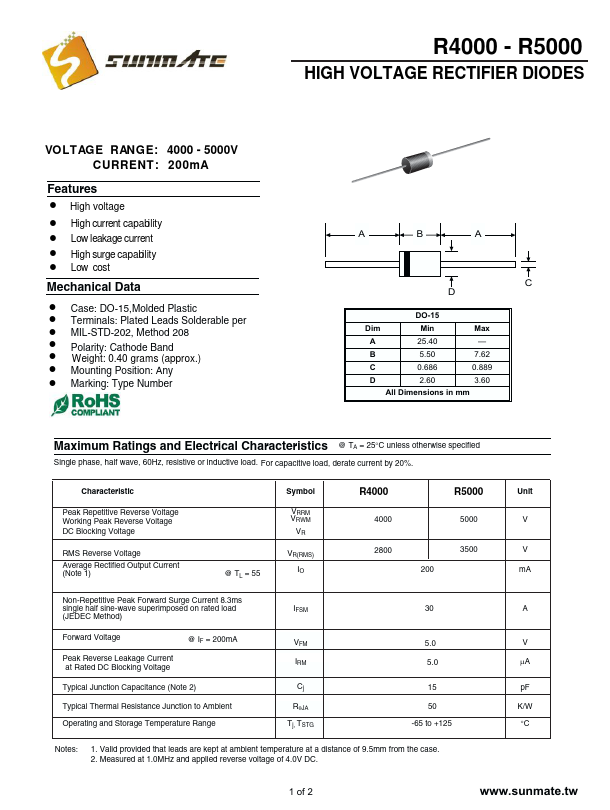

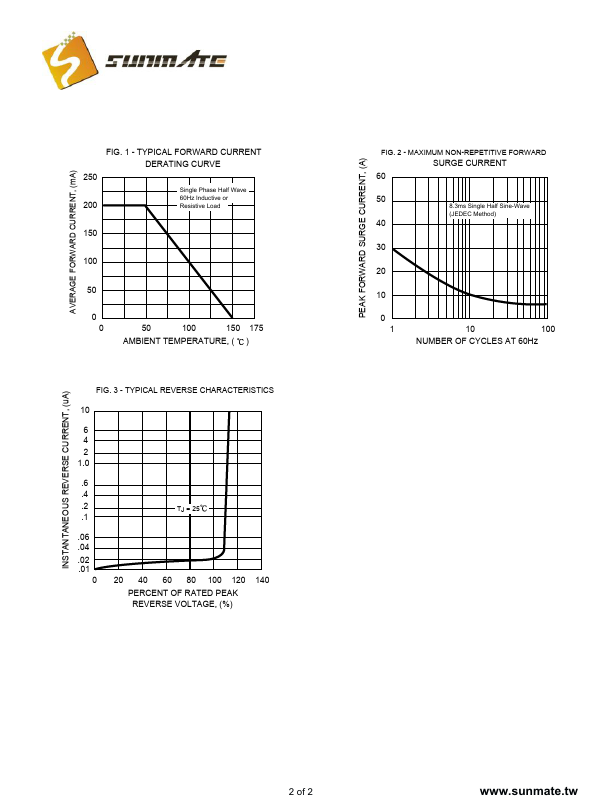

R5000 Datasheet Preview — Preview of R5000 PDF

Datasheet Specifications

Part number: R5000
Manufacturer: Sunmate
File Size: 129.17 KB
Datasheet: R5000-Sunmate.pdf
Description: High voltage diode

Features

* ! High voltage ! High current capability ! Low leakage current ! High surge capability ! Low cost Mechanical Data ! Case: DO-15,Molded Plastic ! Terminals: Plated Leads Solderable per ! MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.40 grams (approx. ) ! Mounting Position: Any ! Marking
