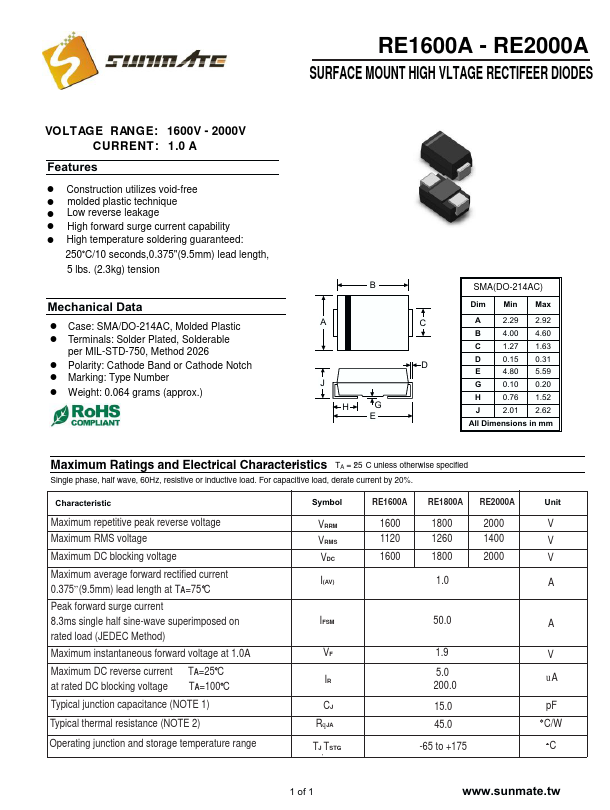

RE2000A - High voltage diode

Sunmate

Datasheet Details

! Construction utilizes void-free ! molded plastic technique ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed: 250 C/10 seconds,0.375"(9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx. ) B A C D J H G E SMA(DO-214AC) Dim Min Max.
