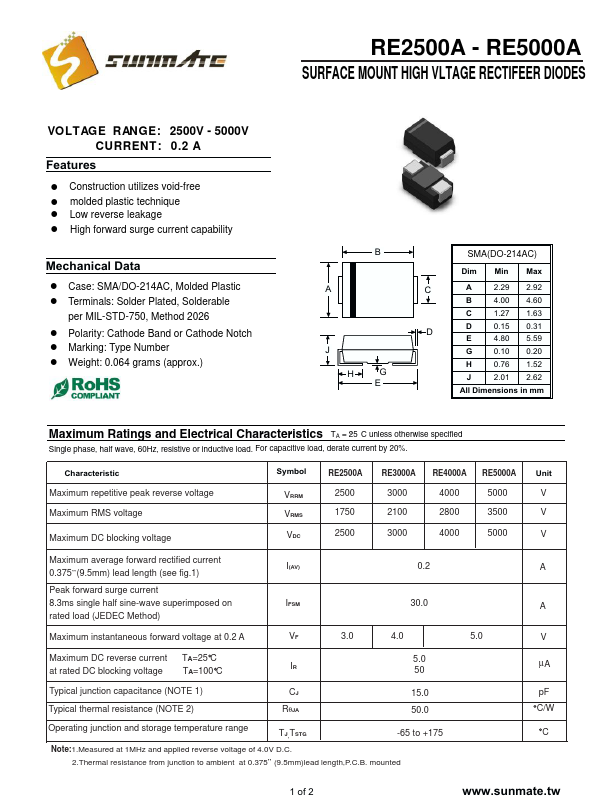

RE2500A
Features
! Construction utilizes void-free ! molded plastic technique ! Low reverse leakage ! High forward surge current capability
Mechanical Data
! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx.)
SMA(DO-214AC)
Dim Min Max
2.29 2.92
4.00 4.60
1.27 1.63
0.15 0.31
4.80 5.59
0.10 0.20
0.76 1.52
2.01 2.62
All Dimensions in mm

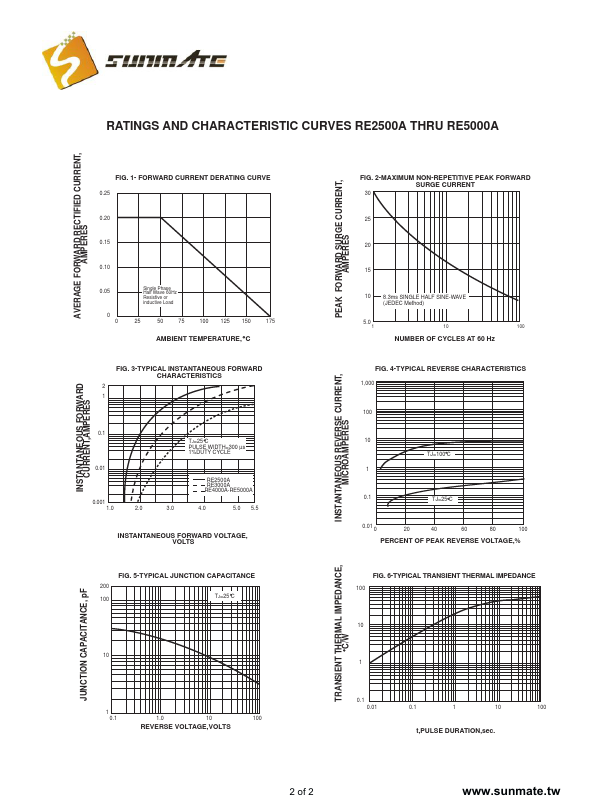

Maximum Ratings and Electrical Characteristics TA = °25 C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic
Maximum repetitive peak reverse voltage Maximum RMS voltage
Maximum DC blocking voltage
Symbol
VRRM VRMS VDC
2500 1750 2500
RE3000A
3000 2100 3000
RE4000A
4000 2800 4000
RE5000A
5000 3500...
