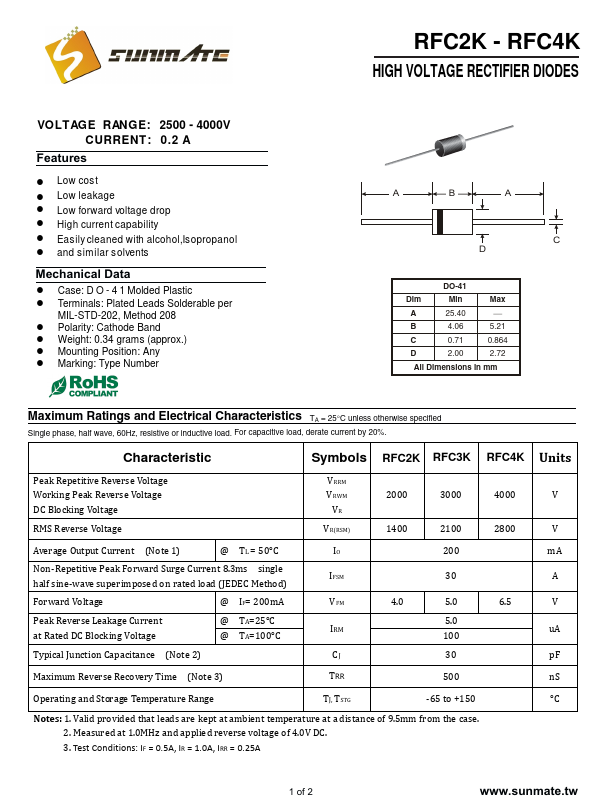

RFC4K
Features
! Low cost ! Low leakage ! Low forward voltage drop ! High current capability ! Easily cleaned with alcohol,Isopropanol ! and similar solvents
Mechanical Data
! Case: D O
- 4 1 Molded Plastic ! Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.34 grams (approx.) ! Mounting Position: Any ! Marking: Type Number
DO-41
Dim
Min
Max
¾
All Dimensions in mm
Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic
Symbols RFC2K RFC3K RFC4K Units
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
RMS Reverse Voltage
Average Output Current (Note 1)
@ TL = 50°C
Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
Forward...
