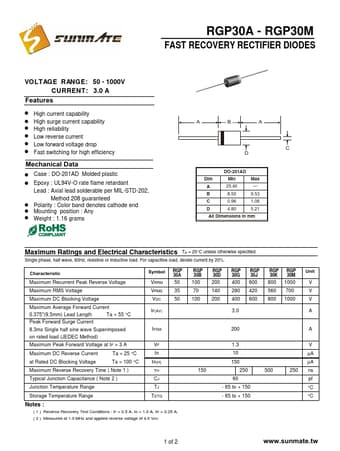

RGP30J, RGP30A - FAST RECOVERY RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	RGP30J, RGP30A
Manufacturer	Sunmate
File Size	266.87 KB
Description	FAST RECOVERY RECTIFIER DIODES
Datasheet	RGP30A-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: RGP30J, RGP30A. Please refer to the document for exact specifications by model.

! High current capability ! High surge current capability ! High reliability ! Low reverse current ! Low forward voltage drop ! Fast switching for high efficiency Mechanical Data ! Case : DO-201AD Molded plastic ! Epoxy : UL94V-O rate flame retardant Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed ! Polarity : Color band denotes cathode end ! Mounting position : Any ! Weight : 1.16 grams ABA D DO-201AD Dim Min Max A 25.40.
B 8.50 9.53 C 0.96 1.06 D 4.80 5.21 All Di.
