RH1200A - High voltage diode

RH1200A Description

RH1200A - RH2000A SURFACE MOUNT HIGH VLTAGE RECTIFEER DIODES VOLTAGE RANGE: 1200 - 2000V CURRENT: 0.5 A .

RH1200A Features

* ! Low cost ! Diffused junction ! Low leakage ! Low forward voltage drop ! High current capability ! Easily cleaned with alcohol,Isopropanol and similar solvents Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathod

📥 Download Datasheet

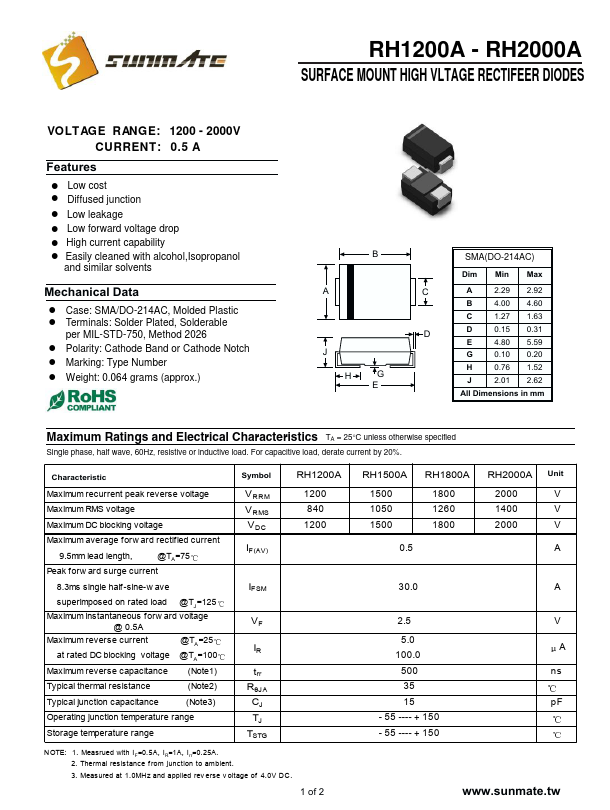

Preview of RH1200A PDF

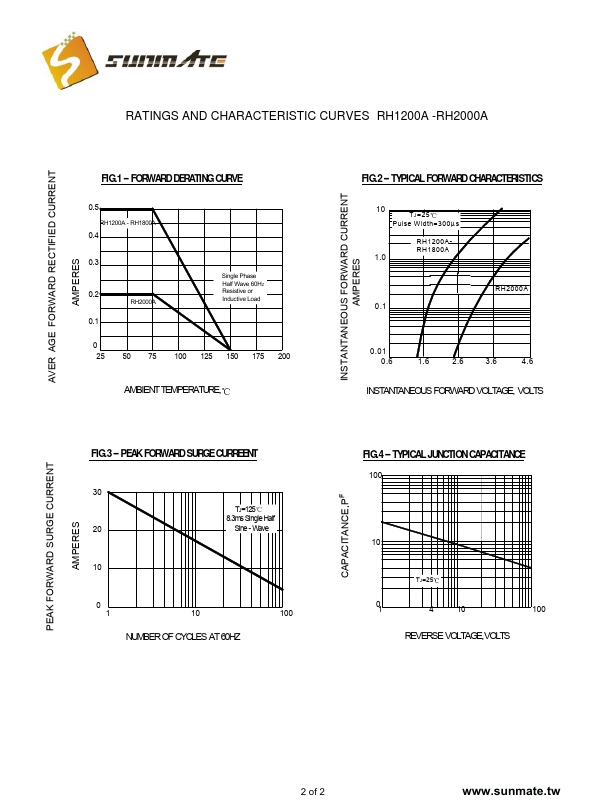

datasheet Preview Page 2

Datasheet Details

Part number
RH1200A
Manufacturer
Sunmate
File Size
204.48 KB
Datasheet
RH1200A-Sunmate.pdf
Description
High voltage diode
