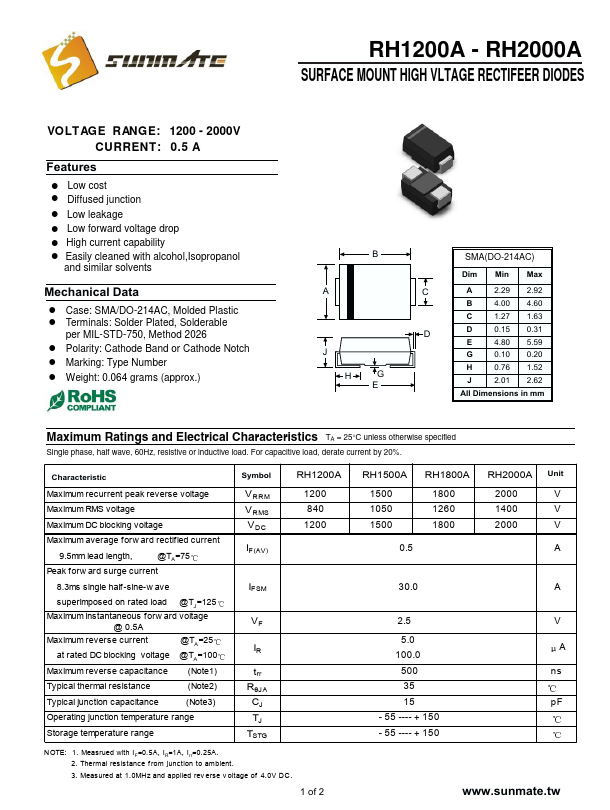

RH1800A
Features
! Low cost ! Diffused junction ! Low leakage ! Low forward voltage drop ! High current capability ! Easily cleaned with alcohol,Isopropanol and similar solvents
Mechanical Data
! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx.)
SMA(DO-214AC)
Dim Min Max
2.29 2.92
4.00 4.60
1.27 1.63
0.15 0.31
4.80 5.59
0.10 0.20
0.76 1.52
2.01 2.62
All Dimensions in mm
Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic
Maximum recurrent peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average f orw ard rectif ied current
9.5mm lead length,
@TA=75
Peak f orw ard surge current
8.3ms single half -sine-w...
