RL204, RL201 - AXIAL LEADED SILICON RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	RL204, RL201
Manufacturer	Sunmate
File Size	132.57 KB
Description	AXIAL LEADED SILICON RECTIFIER DIODES
Datasheet	RL201-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: RL204, RL201. Please refer to the document for exact specifications by model.

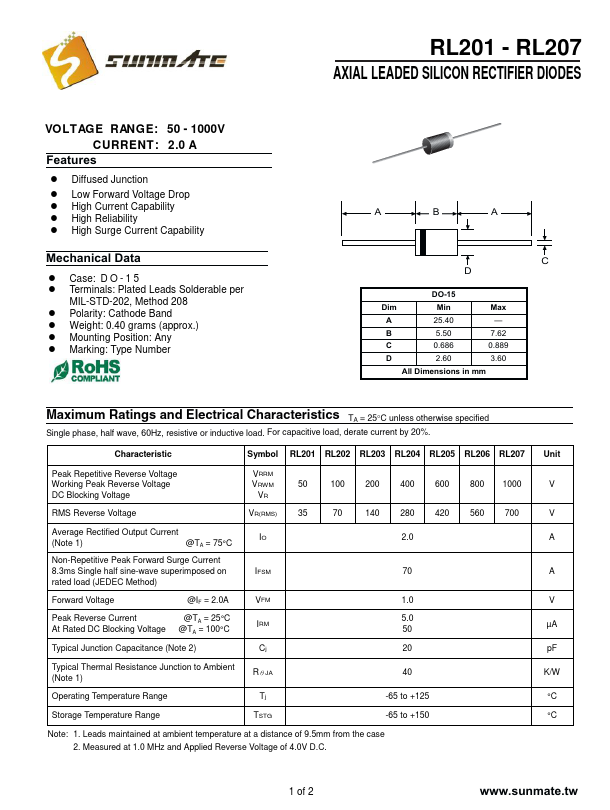

! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case: D O - 1 5 ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.40 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number A B A C D DO-15 Dim Min Max A 25.40.

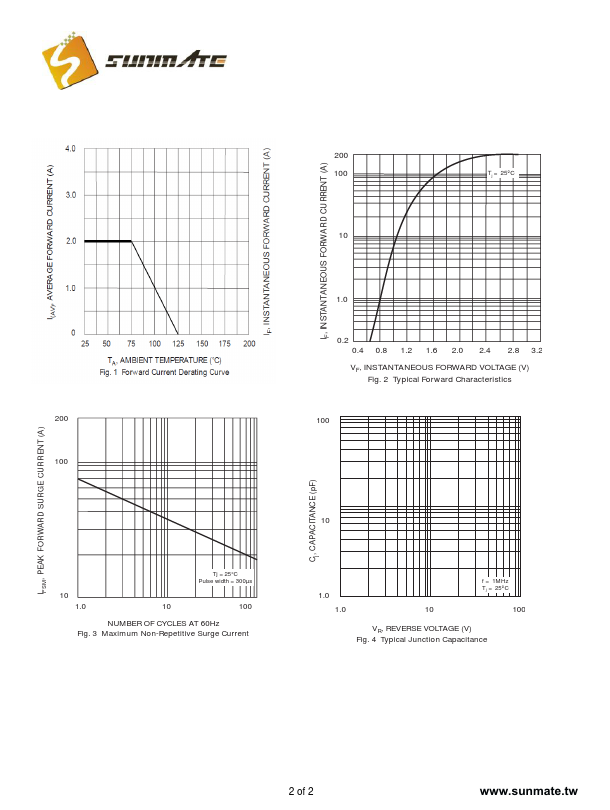

B 5.50 7.62 C 0.686 0.889 D 2.60 3.60 All Dimensions in mm Maximum Ratings and Electrical Characteristics.
