RS1001 - SINGLE-PHASE BRIDGE RECTIFIER

RS1001 Description

RS1001-RS1007 SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE RANGE: 50 - 1000V CURRENT: 10 A .

RS1001 Features

* l Low cost l High forward surge current capability l Ideal for printed circuit board 0 Mechanical Data l Case: Transfer molded plastic l Terminal: Lead solderable per MIL-STD-202E method 208C l Polarity: Polarity symbols marked on case l Mounting: Thru hole for #6 screw, 5 in. -lbs terque max l Weigh

📥 Download Datasheet

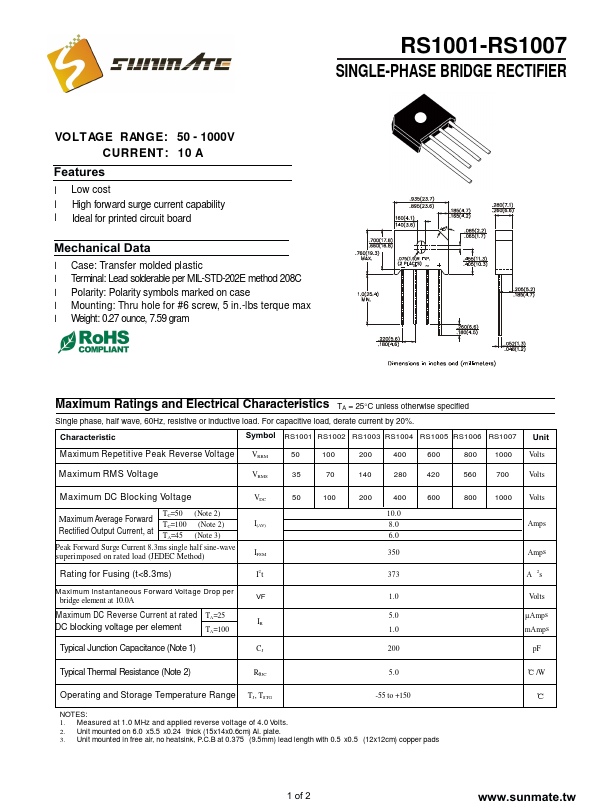

Preview of RS1001 PDF
datasheet Preview Page 2

Datasheet Details

Part number
RS1001
Manufacturer
Sunmate
File Size
380.62 KB
Datasheet
RS1001-Sunmate.pdf
Description
SINGLE-PHASE BRIDGE RECTIFIER
