RS2G, RS2A SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

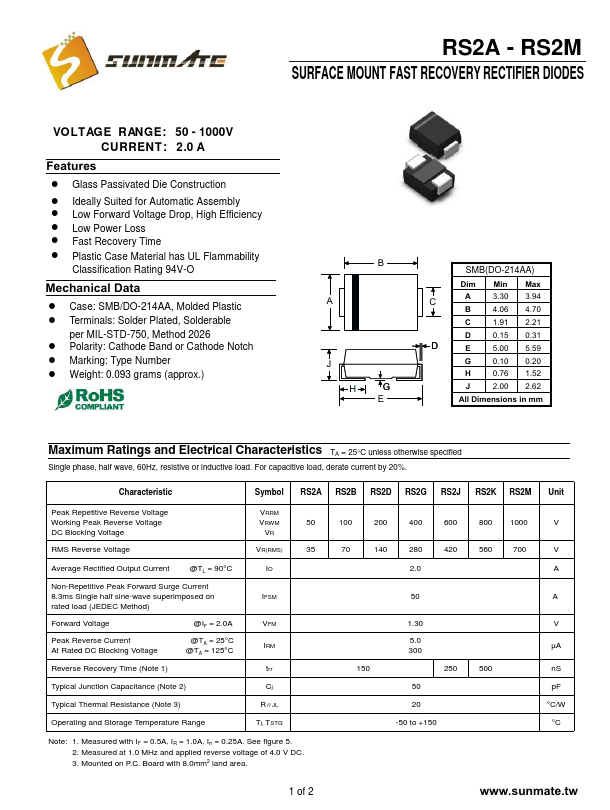

📥 Download Datasheet Datasheet Preview Page 1

Description

RS2A - RS2M SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 2.0 A .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS2G, RS2A. Please refer to the document for exact specifications by model.

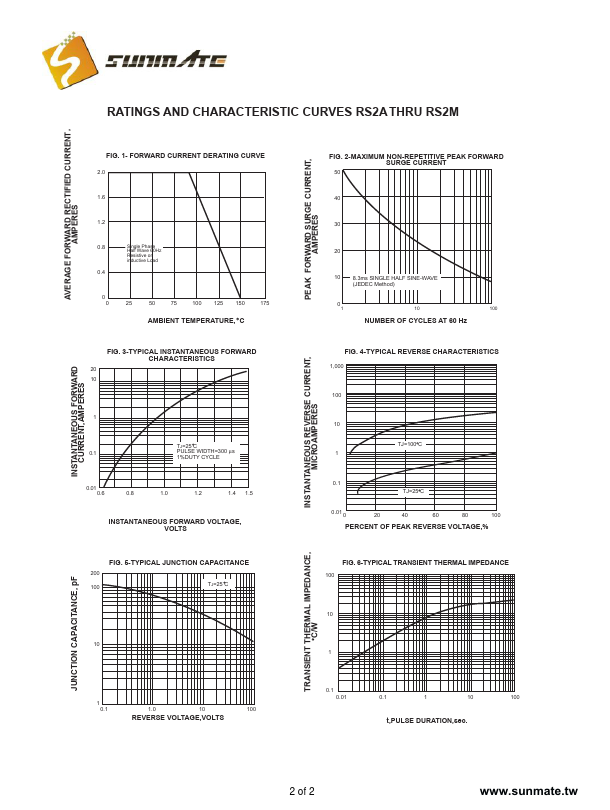

datasheet Preview Page 2

Datasheet Specifications

Part number
RS2G, RS2A
Manufacturer
Sunmate
File Size
243.55 KB
Datasheet
RS2A-Sunmate.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: RS2G, RS2A.
Please refer to the document for exact specifications by model.

Features

* ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss ! Fast Recovery Time   !    Plastic Case Material has UL C la s s ification Ratin g 94V -O   Flammability
